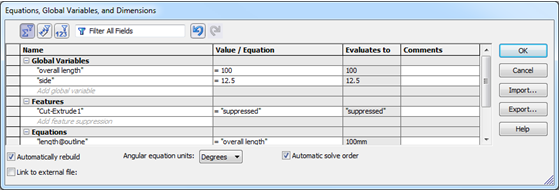

Equations View

The Equations View displays all global variables, equations to suppress features, and other equations for the part or assembly, grouped in those three categories.

In this view you can add new global variables and equations. You can also edit, delete and suppress existing ones, and add comments.

EquationsViewV4

Parent topic: Three Views of Equations
