Graphing Results on an Edge
You can generate a 2-D graph of the desired result on a selected edge of the model. The graph displays the result (Y-axis) versus parametric distance along the selected edge (X-axis). This option is available when you select only one edge.
To graph results on an edge:
-
Display the desired result plot in the graphics area.
-
In the Simulation study tree, right-click the plot icon and select Probe.![](doc1292870115795.image)
The Probe Result PropertyManager opens.
-
Under Options, select On selected entities.
-
Under Results:
-
In the graphics area, click the edge on which you want to plot the displayed result.
-
Click Update.
The displayed result is listed for all nodes associated with the selected edge.
-
To reverse the parametric variable, select Flip edge plot.
-
Under Report Options, click Plot.
The Edge Plot window opens and displays values of the displayed result (Y-axis of the graph) versus the parametric distance on the selected edge normalized to 1 (X-axis).
-
Click
to close the graph window.
-
Click
.
![](doc1292870245835.image)
|
![](doc1292870246444.image)
Flip edge plot is not checked
|
![](doc1292870246069.image)

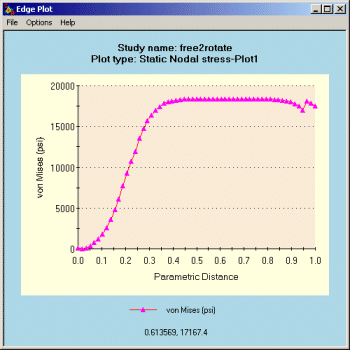

Flip edge plot is checked
|
