You use the Planar Mapping option to define a common 0° ply angle reference for a group of planar shell faces or if you encounter problems with the default Surface Mapping option.
- Inappropriate Ply Orientation
The image shows a face created using the surface fill operation. The surface mapping technique that uses the UV coordinates shows curved stripes on the shell. You can use the planar mapping technique by selecting the XY plane and projecting the desired ply orientation.
| Surface mapping |
Planar mapping using XY plane |
 |
 |
- Inconsistent Orientation Across Faces

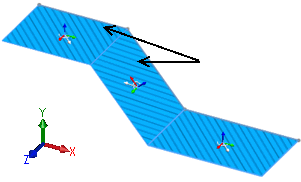

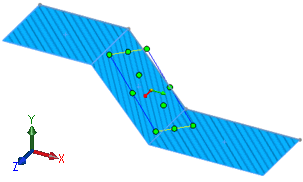

The image shows consistent ply orientation across multiple faces with the planar mapping option. The surface mapping creates inconsistent orientation for a 45º ply angle across the faces.
| Planar mapping using XZ plane |
Surface mapping |
 |
 |
