Corner-Trim

The Corner-Trim tool cuts or adds material to flattened sheet metal parts on an edge or a face.

To create a corner-trim:

1. Create a sheet metal part.

2. Click Corner-Trim (Sheet Metal toolbar) or click Insert, Sheet Metal, Corner Trim.

3. In the Corner-Trim PropertyManager, set the following under Relief Options:

   1. Select edges for Corner edges .

   2. Click Collect all corners.

   3. Select a value for Relief Type.

   4. Select or clear Centered on bend lines.

   5. Set a value for Radius or Side length.

   6. Select Ratio to thickness to set a value.

   7. Select Tangent to bend.

   8. Select Add filleted corners to set a value for Radius .

4. Click OK .

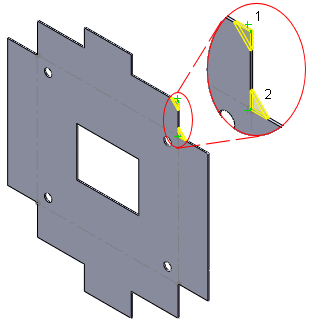

To add or subtract material to a flattened part:

1. In the Corner-Trim PropertyManager, set the following under Break Corner Options:

   1. Select Corner Edges and/or Flange Faces .

   2. Click Collect all corners .

Collect all corners is only available in the flattened state.

2. Click .
