Example of Surface Fill with Reverse Surface

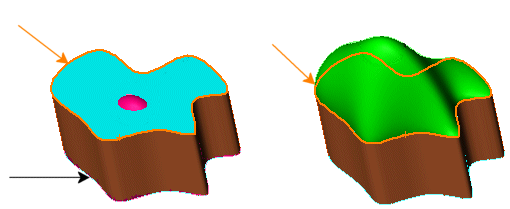

Left image:

You select the top profile for the tangent surface fill (orange arrow), but the surface is attached to the bottom profile (black arrow).

Correction is required.

NOTE: The red section is the top of the fill surface extruding from the bottom profile through the top (blue).

Right image:

You select the top profile for the tangent surface fill (orange arrow), and click Reverse Surface.

Correction is applied.

NOTE: The tangent fill surface (green), is correctly attached to the top profile.
