Instant3D Rulers
Use on-screen rulers to precisely measure modifications.
|

|
|
|
An angular ruler appears for revolves, drafts, and when you use the triad rings to rotate Live Section Planes.
|

|
|
|

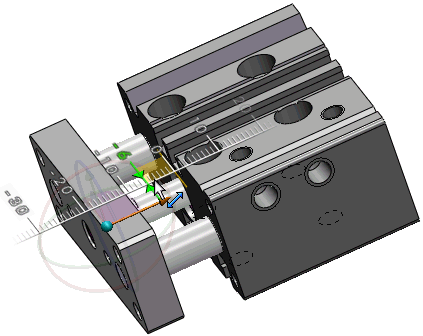

In assemblies, when you click Move with Triad from the shortcut menu, rulers appear with the triad so you can move components to a defined location.
|

|
|
|

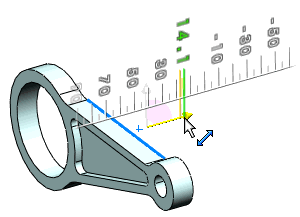

When you drag the triad handles to move features, rulers let you precisely modify the position.
|
|
|
|
When the pointer is away from the ruler, you have free drag of the dimensions. Move the pointer over the ruler to snap to the ruler increments.
|
|
|
|
The ruler also appears if you use Edit Feature for these features:
-
Extrudes (boss, cut, and surface)
-
Revolves (boss, cut, and surface)
-
Base flange
|
If an entity is not draggable, either the handle turns black
or this icon
appears when you try to drag it. The feature is either unsupported or constrained.
