FeatureManager Design Tree in Large Design Review

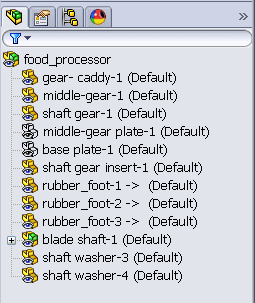

The FeatureManager design tree displays information about the assembly components and hierarchy.

Information displayed in the tree includes:
  • Component names
  • Assembly and subassembly hierarchy
  • Indications of external references
FM_IconComponent_LDR.gif An eye overlay appears on the icons of all components when the assembly is opened in Large Design Review mode.
FM_IconComponent_LDR_Warning.gif A warning icon indicates an issue with the component's graphics data. Hover over the component to see the status of its graphics data.



Limitation
Information about the following items is not shown in the FeatureManager design tree:
  • Planes
  • Assembly features
  • Component patterns
  • Mates
