Filter Modified Components

You can use Filter Modified Components to visually indicate which components have been modified.

Filter Modified Components is available only in assemblies that have been opened in Large Design Review mode, and only when one or more components have been modified.

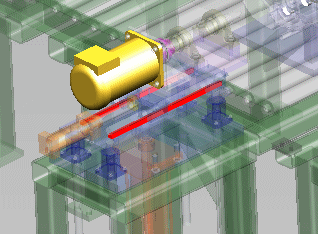

When Filter Modified Components is enabled and you edit and save a component in a separate window, the changed component remains opaque in the assembly window, while unchanged components become transparent. Using Filter Modified Components allows you to see more easily which components have been modified.


Modified components include:
  • Components that are detected as out of date when you open the assembly in Large Design Review
  • Components that you modify and save in a separate window during the current Large Design Review session
Parent topic: Component Changes
