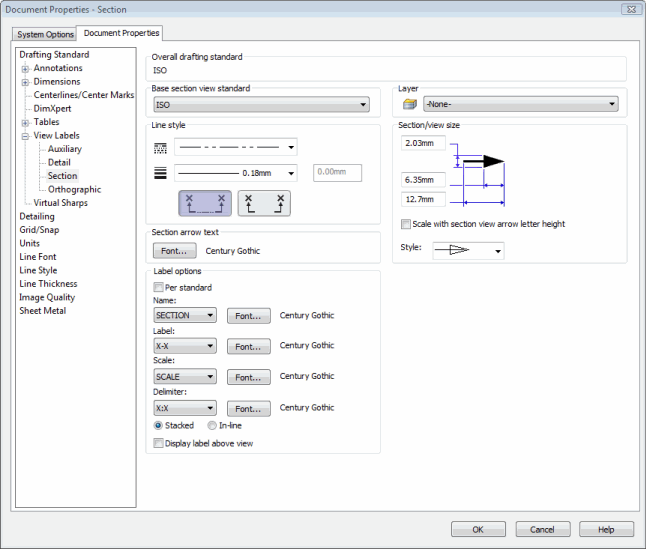

Document Properties > View Labels > Section

Setting

Get/Set Methods

Return Value or <Value>

Comments

Base section view standard

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingSectionView)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingSectionView, swDetailingStandard_e.<Value>)

See swDetailingStandard_e for valid options

Specifies the base section view standard to use

Line style - Line Style

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontSectionLineStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontSectionLineStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineStyles_e.<Value>)

See swLineStyles_e for valid options

Specifies the style of section view lines

Line style - Line Thickness

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontSectionLineThickness, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontSectionLineThickness, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>)

See swLineWeights_e for valid options

Specifies the thickness of section view lines

Line style - Custom thickness

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swLineFontSectionLineThicknessCustom, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swLineFontSectionLineThicknessCustom, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies custom thickness of section view lines; sets Custom Thickness to the specified thickness and Leader Thickness to Custom Size

Line style- Standard display or alternative display

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDisplayAlternateSection, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDisplayAlternateSection, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

• True for alternative display

• False for standard display

Specifies whether section line displays across drawing view and arrow ends stop at the ends of the section cut

Section arrow text - Font...

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingSectionTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingSectionTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the set method

View label text - Font...

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingSectionLabelTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingSectionLabelTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the set method

Label options - Per standard

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingSectionViewLabels_PerStandard, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingSectionViewLabels_PerStandard, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Label options - Name

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingSectionViewLabels_Name, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingSectionViewLabels_Name, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingViewLabelsName_e.<Value>)

See swDetailingViewLabelsName_e for valid options

Specifies the format of the title to use in the front of the section view label

Label options - Name - Font

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingSectionLabelNameTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingSectionLabelNameTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the set method

Label options - Label

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingSectionViewLabels_Label, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingSectionViewLabels_Label, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingViewLabelsLabel_e.<Value>)

See swDetailingViewLabelsLabel_e for valid options

Specifies the format of the section view label

Label options - Label - Font

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingSectionLabelLabelTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingSectionLabelLabelTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the set method

Label options - Scale

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingSectionViewLabels_Scale, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingSectionViewLabels_Scale, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingViewLabelsScale_e.<Value>)

See swDetailingViewLabelsScale_e for valid options

Specifies the format of the title to use in front of the scale value

Label options - Scale - Font

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingSectionLabelScaleTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingSectionLabelScaleTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the set method

Label options - Delimiter

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingSectionViewLabels_Delimiter, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingSectionViewLabels_Delimiter, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingViewLabelsDelimiter_e .<Value>)

See swDetailingViewLabelsDelimiter_e for valid options

Specifies the format of the scale value

Label options -  Delimiter - Font

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingSectionLabelDelimiterTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingSectionLabelDelimiterTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the set method

Stacked or In-line

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingSectionViewLabels_Stacked, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingSectionViewLabels_Stacked, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Label options - Display label above view

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingSectionViewLabels_AboveView, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingSectionViewLabels_AboveView, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to show label above detail view

Layer

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingSectionView)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingSectionView, <Value>)

Valid Options:

• "Border"

• "Dimensions"

• "Notes"

• "BOM"

• "FORMAT"

This setting is available only on drawings; depending on drawing, some options may not apply

Section/view size - Arrow width

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingSectionArrowWidth, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingSectionArrowWidth, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value in meters

Specifies width of arrowheads in section views

Section/view size - Arrowhead length

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingSectionArrowHeight, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingSectionArrowHeight, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value in meters

Specifies height of arrowheads in section views

Section/view size - Arrow length

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingSectionArrowLength, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingSectionArrowLength, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value in meters

Specifies length of arrowheads in section views

Section/view size - Scale with section view arrow letter height

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingScaleWithSectionTextHeight, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingScaleWithSectionTextHeight, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to scale the arrow head to the height of the text attached to the end of the arrows in a section view

Style

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingSectionArrowStyle swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingSectionArrowStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swArrowStyle_e.<Value>)

See swArrowStyle_e for valid options

Specifies style of section view arrows

Enumerator

Comment

swDetailingSectionLabelTextFormat

Obsolete.

Use swDetailingSectionLabelNameTextFormat, swDetailingSectionLabelLabelTextFormat, swDetailingSectionLabelScaleTextFormat, or swDetailingSectionLabelDelimiterTextFormat
