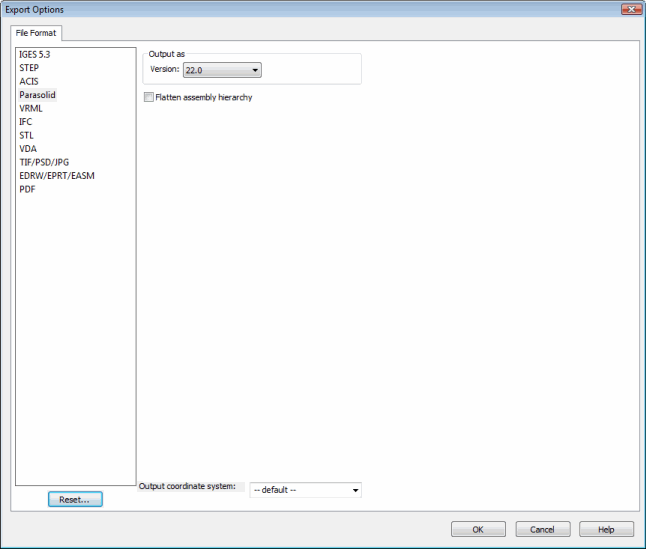

File > Save As > Save as type > Parasolid > Options > Parasolid

Setting	Get/Set Methods	Return Value or <Value> or <OnFlag>	Comment
Output as - Version	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swParasolidOutputVersion) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swParasolidOutputVersion, swParasolidOutputVersion_e.<Value>)	See swParasolidOutputVersion_e for valid options
Flatten assembly hierarchy	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swXTAssemSaveFormat) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swXTAssemSaveFormat, <OnFlag>)	Boolean value	Specifies whether to flatten assembly hierarchy in Parasolid output; for assemblies only
Output coordinate system	IModelDocExtension::GetUserPreferenceString(swUserPreferenceString_e.swFileSaveAsCoordinateSystem, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceString(swUserPreferenceString_e.swFileSaveAsCoordinateSystem, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	String value	Contains the name of the transform coordinate system; an empty string signifies that the default coordinate system that does not require a transform; coordinate settings are not saved with the document; they must be selected at export time
