Iterative Solution Methods: Modified Newton-Raphson (MNR) Scheme

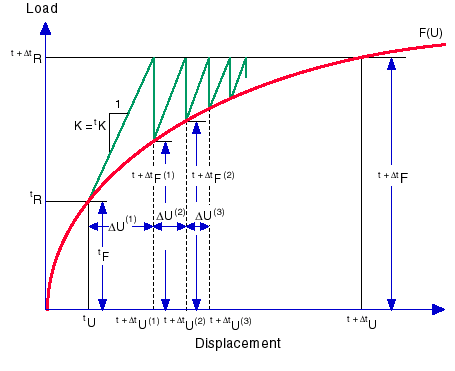

In this scheme, the tangential stiffness matrix is formed and decomposed at the beginning of each step (or as specified when defining the properties of the study) and used throughout the iterations as shown in the figure below.

Related Topics

Iterative Solution Methods

Newton Raphson (NR) Scheme
