Drawings of Routing Assemblies

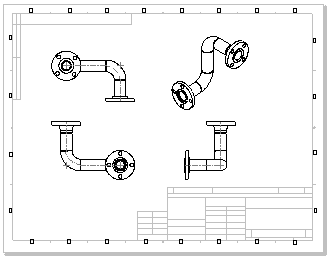

In a drawing of a route sub-assembly, you can display the path of the pipe or tube, using the centerline font.

  • If the 3D sketch of the route is shown in the assembly document, the path is displayed automatically in any new drawing views you create.

  • If the sketch is hidden in the assembly document, the path is hidden in new drawing views. To show the path in a view, expand the FeatureManager design tree for the view, expand the Route feature, right-click the 3D sketch, and select Show.


A bill of materials in a drawing of a route sub-assembly has some special requirements. See Bill of Materials for Routing Assemblies.
