Display Dimensions Flat to Screen Example

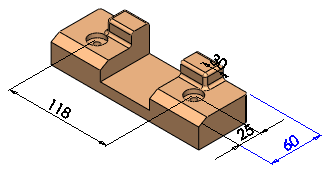

Selected: Dimension text is in the plane of your computer screen, and all dimension text and lines in the current annotation view are visible.

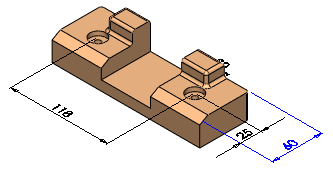

Cleared: Dimension text is in the plane of the 3D annotation view, and dimension text and lines that are behind the model are hidden.
