Fully Defining Sketches in Imported Drawings

You can set relations on the sketch entities of an under defined imported .DXF or .DWG file drawing.

To fully define sketches in imported drawings:

  1. Import a sketch from a .DXF or .DWG file drawing.

  2. Click Tools, Dimensions, Fully Define Sketch.

  3. Set options in the Fully Define Sketch PropertyManager, then click .

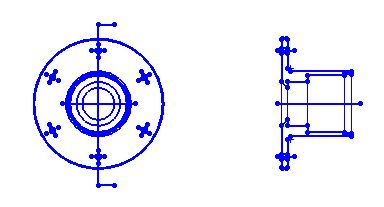

Imported .DWG file drawing before Fully Define Sketch

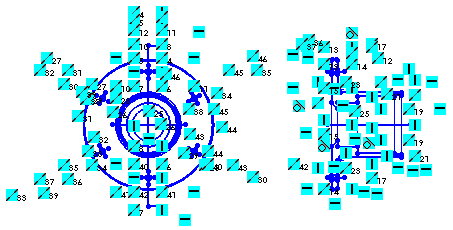

Fully Define Sketch added 99 relations to the drawing

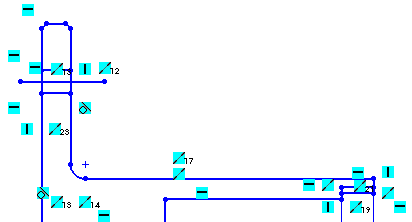

Detail of some of the 99 relations between entities
