Bend Tables

There is a new bend table in SolidWorks 2012. You can insert the new bend table in the flat pattern view of sheet metal parts in drawings. Bend tables provide information about the bends in the sheet metal body including tags, directions, angles, and inner radii. You can insert bend tables or bend notes, but not both.

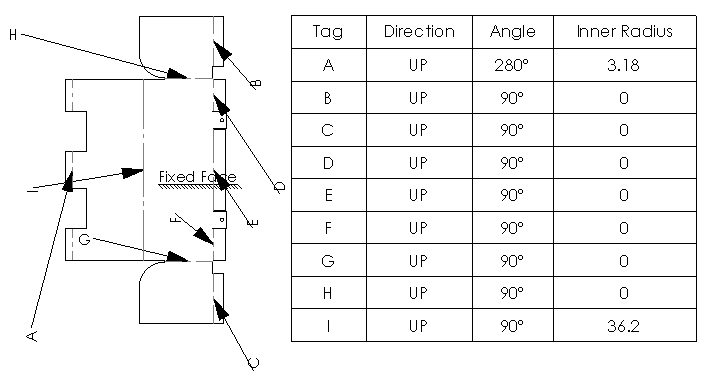

Bend Table

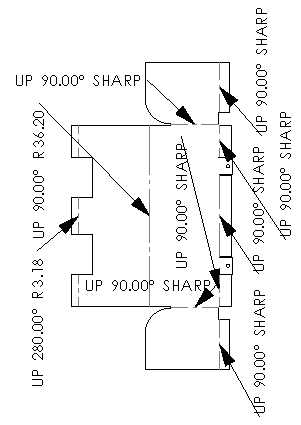

Bend Notes

Inserting Bend Tables
Setting Bend Table Properties
