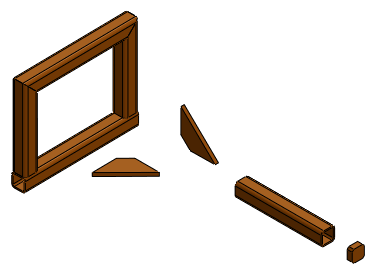

Collapsing an Exploded View

You can toggle between the exploded and collapsed views.

  1. In the Manager Pane, on the ConfigurationManager tab TAB_FM_config.gif, expand Default<As Machined>.
  2. Double-click ExplView, or right-click it and click Collapse.


  3. To return to the exploded view, double-click ExplView again, or right-click it and click Explode.



    Animation of Explode and Collapse is not supported in multibody parts.
