Sketch on the Face of a Part
To create new features on a part, you sketch on the face of the part where you want to locate the feature.
To sketch on model faces:
-

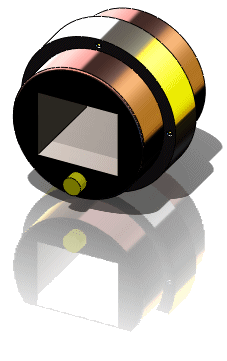

Select the planar model face on which you want to sketch.
-
Click a sketch tool on the Sketch toolbar, click Sketch
, or click Insert, Sketch.
The following happens:
|

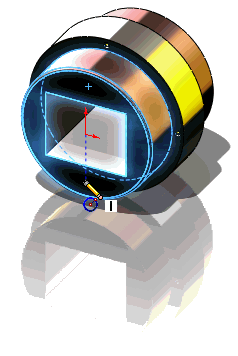

 A grid appears on the face that you selected (if you selected Display grid in Tools, Options, Document Properties, Grid/Snap).
|
|
|
To sketch on a different face, exit the current sketch, select the new face, and open a new sketch.
|
|
|
You can also use RapidSketch to open sketches on any planar face or plane with an active sketch tool,
|
