Automatic Sketch Operations
Automatic operations increase productivity in sketching. Automatic relations and inferencing also improve efficiency in sketching.
|

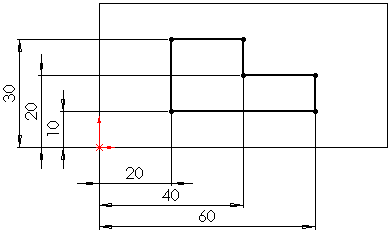

You can dimension all entities or selected entities in a sketch, including model edges, with the Fully Define Sketch  tool on the Dimensions/Relations toolbar.
You can solve over defined sketches using SketchXpert, which cycles through potential solutions.
|
|
|
|
|
|
You can transition automatically from line to tangent arc and back, so you can create sketches like this without changing tools.
|
|
|
|
|
|
You can convert raster data to vector data using auto trace tools.
|
|
|
|
|
|
You can highlight and activate planar faces or planes to quickly create sketches using RapidSketch.
|
|
