Break Corner/Corner-Trim
The Break Corner/Corner-Trim tool cuts or adds material to a folded sheet metal part on an edge or a face.
|
|
|

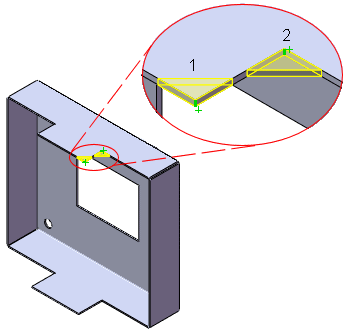

1. External corner: cut material
2. Internal corner: Add material
|
To create a break corner:
-
Create a sheet metal part.
-
Click Break-Corner/Corner-Trim
(Sheet Metal toolbar) or click Insert, Sheet Metal, Break Corner.
-
In the Break Corner PropertyManager, under Break Corner Options:
-
Select Corner Edges and/or Flange Faces
.
-
Select a Break type: Chamfer
or Fillet
.
-
Set a value for Distance
(Chamfer) or Radius
(Fillet).
-
Click
.
