Example: Deform Region

Example of using a point on face with Deform region:

Both examples use the same initial face to deform with Deform Distance = 10 and Deform Radius = 100.

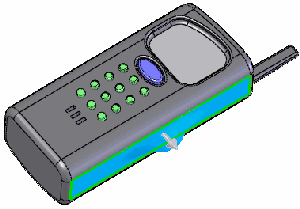

Preview showing Deform region selected with no fixed edges or faces selected

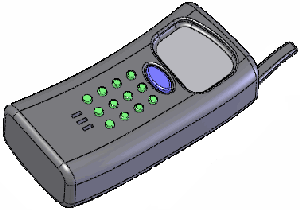

Results with Deform region selected

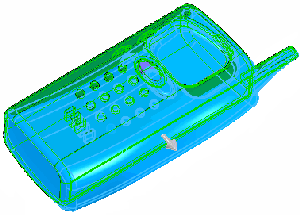

Preview showing Deform region cleared

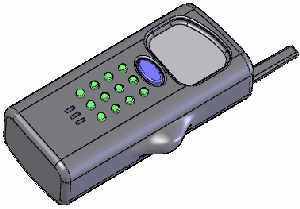

Results with Deform region cleared
