| Miter flanges on multiple edges with offset and relief (rectangular, obround, or tear) applied are not created with offset. The flange sketch is created at the start of the flange face with a zero offset value.
|
Sketch of flange start face
|
| Miter flanges with the position type Material Outside or Material Inside and with non-planar lateral faces are not recognized.
The highlighted lateral faces are non-planar, so the miter flange is not recognized.
|
 |
| Miter flanges are not recognized if the selected edges are separated by circular arcs tangential to them.
|
Circular edges separate selected edges |
| If the flange/bend faces are trimmed off due to feature interaction or another reason, miter flanges are not recognized.
|
 |
Miter flanges on multiple edges are recognized incorrectly for these conditions:
- Relief type Obround
- Obround is overlapped by the bend connected to the flange.
|
 |
Incorrectly recognized as two half obrounds |
| Redundant faces/edges are merged when you run FeatureWorks. For miter flanges on multiple edges, if the lateral faces are split, they are combined to form a single face.
|
 |
|
| Miter flanges with a non-planar start lateral face and a planar end lateral face are not recognized.
In the example, if you select the flange faces in the clockwise direction, recognition is successful, while counter clockwise selection fails.
|
 |
| Planar face |
Non-planar face |

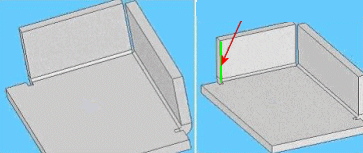

| For miter flanges created on split edges, after step-by-step recognition, the two split edges merge into a single edge and the geometry changes.
|
Before |
After |
