Along X Inferred
|
![sketch_relation_alongX.gif](acu1301687239584.image) Horizontal line sketched along X axis. Applies to 3D sketches.
|
Along Y Inferred
|
![sketch_relation_alongY.gif](acu1301687241560.image) Vertical line sketched along Y axis. Applies to 3D sketches.
|
Along Z Inferred
|
![sketch_relation_alongZ.gif](acu1301687234418.image) Horizontal line sketched along Z axis. Applies to 3D sketches.
|
Coincident Inferred
|
![sketch_relation_coincident.gif](acu1302186164842.image) Second circle sketched coincident to first circle.
|
Colinear Added
|
![sketch_relation_collinear.gif](acu1302025504582.image) Colinear relation added to the first two horizontal lines.
|
Concentric Added
|
![sketch_relations_concentric.gif](doc1292867438905.image) |
Coradial Added
|
![sketch_relation_coradial.gif](acu1302031845632.image) Coradial relation added to the inner arcs.
|
Equal Added
|
![sketch_relation_same_length.gif](acu1302095678117.image) Equal relation added to all inner circles. This way, you set the diameter for only one circle.
|
Equal Curvature Added
|
![sketch_relation_equal_curvature.gif](acu1302032184465.image) The rate of change of the slope (curvature) is the same at the point shared between the curves (C2 continuous).
|
Equal Slots Added
|
![sketch_relation_equal_slots.gif](acu1302093091109.image) |
Fix Added
|
![sketch_relation_fix.gif](acu1302093304328.image) Fixed relation added to point.
|
Fix Slot Added
|
![sketch_relation_fix_slot.gif](acu1302093512121.image) |
Horizontal Added
|
![sketch_relations_horizontal-added.gif](doc1292867437999.image) Horizontal relation added to spline handles.
|

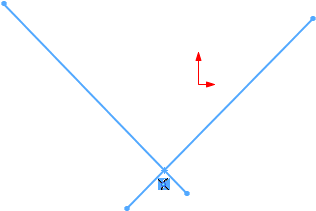

Intersection Inferred or added
|
![sketch_relation_intersection.gif](acu1301687240306.image) Relation added at the intersection of the point and two lines. If you sketch the lines and points so they intersect, the relation is inferred.
|
Merge Added
|
![sketch_relation_after_merge.gif](acu1301687246518.image) The endpoint of the line and the point on the rectangle are merged to create one point.
|
Midpoint Inferred or Added
|
![sketch_relation_midpoint.gif](acu1302093883023.image) Construction line sketched from the midpoint of the diagonal line.
|
Normal Added
|
![sketch_relation_normal.gif](acu1301687243737.image) Normal relation added between the line and plane.
|
Offset Inferred
|
![sketch_relation_offset.gif](acu1302200368870.image) Larger rectangle is offset by 10 from the smaller rectangle using the Offset Entities tool.
|
On Edge Inferred
|
![sketch_relation_on_edge.gif](acu1302201237240.image) Edges of the solid are projected to the sketch plane using the Convert Entities tool.
|
On Plane Inferred and Added
|
![sketch_relation_on_plane.gif](acu1302095001123.image) Any geometry sketched on a plane.
|
On Surface Inferred
|
![sketch_relation_on_surface.gif](acu1302097774368.image) Point sketched on a surface.
|
Parallel Inferred
|
![sketch_relations_parallel.gif](doc1292867438624.image) Two lines sketched with parallel relation.
|
Parallel YZ Added
|
![sketch_relation_parallelYZ.gif](acu1302095511543.image) Parallel relation added to the 3D line and front plane.
|
Parallel ZX Added
|
![sketch_relation_parallelZX.gif](acu1301687243018.image) Parallel relation added to the 3D line and front plane.
|
Perpendicular Inferred
|
![sketch_relations_perpendicular.gif](doc1292867439171.image) Second line sketched perpendicular to first line.
|
Pierce Added
|
![sketch_relation_pierce.gif](acu1301687245510.image) Pierce relation added between sketch point and vertical line.
|
Symmetric Inferred or Added
|
![sketch_relation_symmetric.gif](acu1302096412849.image) Relations added using the Mirror Entities or Dynamic Mirror tool.
|
Tangent Added
|
![sketch_relation_tangent.gif](acu1301687238198.image) Tangent relation added to two splines.
|

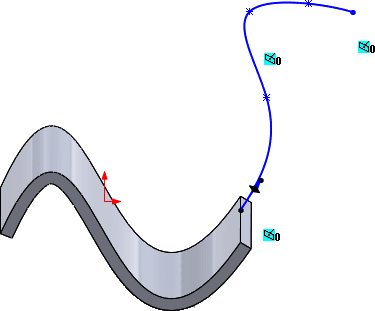

Tangent to Face Added
|
![sketch_relation_tangent_to_face.gif](acu1302096899252.image) Same slope at the edge of intersection between the face and spline (C1 continuous).
See Tangent to Face Relations with Splines.
|
Traction |
See Using Traction and Belts for Layout Sketches. |
Vertical Inferred
|
![sketch_relation_vertical.gif](acu1302186300164.image) Circle sketched with center inferred to sketch origin.
|
