You can add or remove sketch entities. When you remove sketch entities from a block, those sketch entities are promoted from the block level to the immediate next level. Add a block reverses the process.
Add/Remove Block is useful if you have a complex sketch, for instance an imported file, and you want to use selected entities from the sketch as blocks.
To add/remove a block:
- In the Edit Sketch mode, select a Block
in the FeatureManager design tree.
- Click Edit Block
(Blocks toolbar) or .The circuit is a single block:
![add_remove_block_01.gif](doc1292869319807.image)
- Click Add/Remove Entities
(Blocks toolbar) or .
- In the PropertyManager, under Block Entities, select the entities you want to add or remove.
The sketch entities that are marked will be removed from the block:

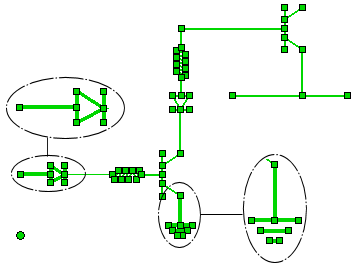

![add_remove_block_02.gif](doc1292869319432.image)
- Click
, click the block confirmation corner
, and then close the sketch.The entities selected are still part of the sketch, but were promoted to the sketch level.
