Expanding and Collapsing the Display Pane

To expand or collapse the Display Pane:

  1. Click FM_display_pane_expand.gif at the top of the FeatureManager pane (to the right of the tabs) to expand the Display Pane.

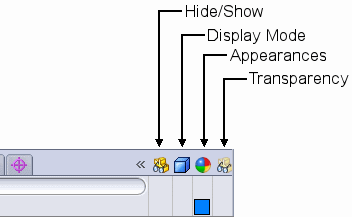

    The Display Pane appears to the right of the FeatureManager pane:

  2. Click FM_display_pane_collapse.gif to collapse the Display Pane.
