From the shortcut menu, you can convert a drawing view to sketch entities or a block of sketch entities.
In a drawing view, right-click and click Convert View to Sketch. In the Convert View to Sketch PropertyManager, you can:
|
Replace view with sketch
|
Replaces the drawing view with equivalent 2D sketch entities.
 |

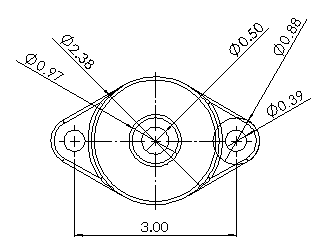

| Original drawing view |
 |

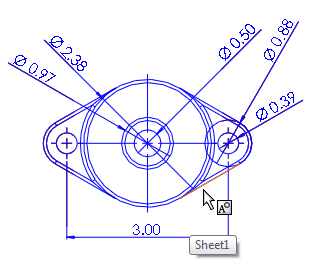

| Equivalent 2D sketch entities |
|
|
Replace view with block
|
Replaces the drawing view with equivalent 2D sketch entities that are grouped in a block.
 |
| Original drawing view |
|
| Block with equivalent 2D sketch entities |
|
|
Insert as block
|
Creates a separate block comprised of equivalent 2D sketch entities that you can place anywhere in the drawing.

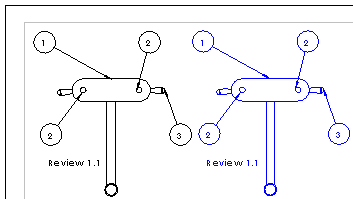

In this example, the block on the right is added to the drawing view, rather than replacing the drawing view on the left.
|
