Copying Exploded Views

You can copy exploded views from one configuration and paste them into others.

  1. Under cfg_1, Ctrl + select the two exploded views.
  2. Press Ctrl + C.
  3. Single-click cfg_2 to select it without activating it.
  4. Press Ctrl + V.

    The configuration icon changes from CfgMgr_ExplView_cfg_no_exploded_views.png to CfgMgr_ExplView_cfg_with_exploded_views.png to indicate that the configuration now has exploded views.

  5. Double-click cfg_2 to activate it, and click EXPAND.gif to expand it.

    Copies of the two exploded views are listed.

    Each exploded view in the assembly must have a unique name.

  6. Double-click Copy of ExplView2 CfgMgr_ExplView.gif.

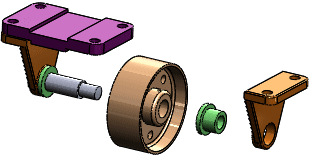

    The exploded view expands.
