Magnetic Line PropertyManager

You can use magnetic lines to align balloons.

To display this PropertyManager, in a drawing, click Magnetic Line Tool_magnetic_line_annotations.gif (Annotations toolbar) or Insert > Annotations > Magnetic Line.

Parameters

  Length Sets the line length.
  Angle Sets the angle of the line between 0 and 180 degrees from the horizontal.
  Spacing Select one of the following:

Equal

Equally distributes the balloons between the outermost balloons.

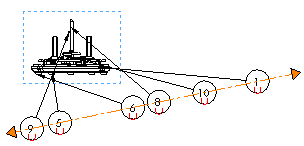

Free Drag

Lets you place the balloons anywhere on the line.
