On Cylindrical Face

You can use this option only when all the selected faces are cylindrical. Each face can have a different axis. The radial, circumferential, and axial directions for each face are based on its own axis.

Attribute Value
Possible DOFs for solid meshes 3 translations
Possible DOFs for shell meshes 3 translations and 3 rotations
Possible DOFs for trusses 3 translations
3D symbol
translation rotation
Selectable entities Cylindrical faces only
Translations

Radial

Circumference

Axial
Rotations (for shells only)

About radial direction

About circumferential direction

About axial direction

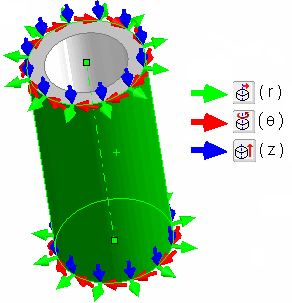

The radial (r), circumferential (θ), and axial (z) directions associated with a cylindrical face are illustrated in the figure.

Example

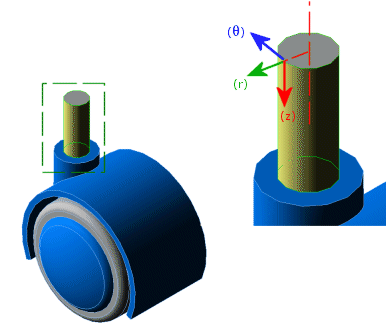

Suppose that there are two casters in the model. You can use the On cylindrical faces option to set the axial translation (z) and the radial translation (r) of the caster pins to zero. The pins are free to rotate in the circumferential direction (Θ).
Shell mesh of the part. You can use the On cylindrical faces option to set the axial translation (z) and the radial translation (r) of the shell face to zero. The face is free to rotate in the circumferential direction (Θ).
