Adding a Revision to the Table

To add a revision to the table (add a row):

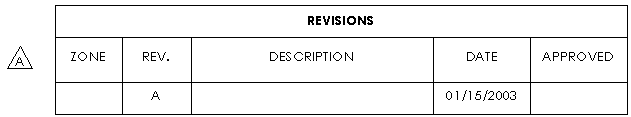

  1. Right-click in the revision table and select Revisions > Add Revision.

    A revision is added to the table with the current date. If there are already revisions in the table, the new revision appears below the last revision and includes the next letter in sequence.

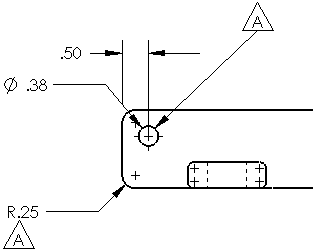

  2. Click to place one or more revision symbols on the drawing. To add a leader, place the symbol on a vertex, edge, or face.

    The symbols are Note annotations.
