Hiding and Displaying Table Rows or Columns

You can hide rows or columns in a table and you can display hidden rows.

  1. Click the table.

    The table toolbar appears.

  2. Click Hide/Show .

    The pointer changes to .

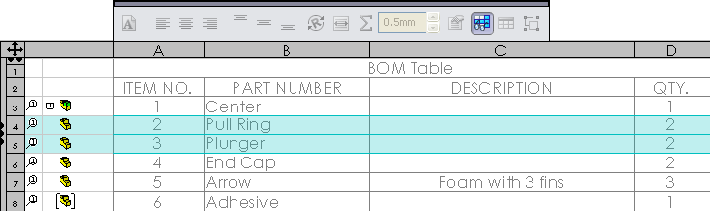

  3. Click row numbers to select rows to hide.

    Click a row twice to clear selection.

  4. Click column headings to select columns to hide.

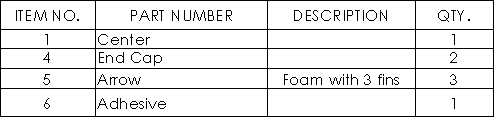

  5. Click Hide/Show to hide the selected rows and columns.

For more information, see SolidWorks Help: Bill of Materials.
