Creating Cable Wire, Component, or Covering Excel Files

  • Create an Excel spreadsheet with appropriate column headers. For cable libraries, you can create column names for cable libraries and core libraries. Use the following rules when creating the spreadsheet:

    All column headers are required. The column headers vary depending on the type of library file you want to create. You can use different header names for the fields in the Excel file and map the names to the library header fields when you import the Excel file.

    A cable library needs one row to define the cable, plus a row to define each core. A piping and tubing covering library can have column names for covering libraries and materials libraries. Other libraries need only one row

    The following tables list the column headers for each file type.

    Column Header for Cable Library   Column Header for Core Library
    Cable Name Outer Diameter   Cable Name Color
    Part Number Number of Cores   Wire Name Disp Color
    Description Minimum Bend Radius   Size Minimum Bend Radius
          Outer Diameter Seal

    Column Header for Wire Library
    Wire Name Disp Color
    Part Number Minimum Bend Radius
    Description Size
    Outer Diameter Seal
    Color

    Column Header for Component Library
    Part Number Pin List
    Library Name Terminals
    Configuration Name Component Outer Diameter
    Description Gauge
    Column Header for Ribbon Cable Library
    Cable Name Color
    Part Number Disp Color
    Description Number of Conductors
    Thickness Minimum Bend Radius
    Width
    Column Header for Piping & Tubing Covering Library   Column Header for Piping & Tubing Material Library
    Covering ID Packing   Covering ID Melting Point
    Covering Name Part Number   SolidWorks Material Library Reinforcement Insert
    Covering Type Application   SolidWorks Material Insert
    Width Voltage Breakdown   SolidWorks Material ID Composition
    Thickness Shape   Material Loss on Ignition
          Color Elongation
          Construction Peel Adhesion
          Service Temperature
    Column Header for Electrical
    Covering ID Outer Diameter
    Covering Name Color
    Application Part Number
    Cost Description

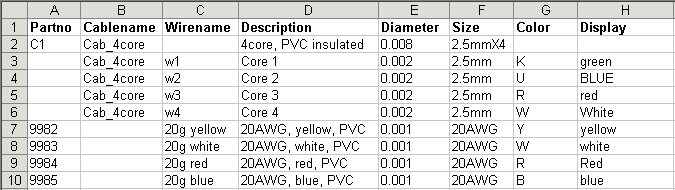

Here is an example of an Excel file for one 4-core cable, part number C1, and four individual wires, part numbers 9982 through 9985.
