Geometric Tolerancing

The geometric tolerance symbol adds geometric tolerances to parts and drawings using feature control frames. The SolidWorks software supports the ASME Y14.5-2009 Geometric and True Position Tolerancing guidelines.

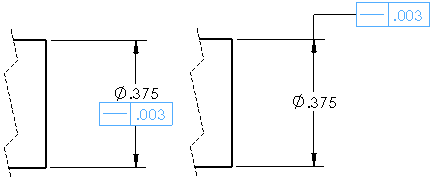

  • You can place geometric tolerancing symbols, with or without leaders, anywhere in a drawing, part, assembly, or sketch, and you can attach a symbol anywhere on a dimension line.
  • The Properties dialog box for geometric tolerance symbols offers selections based on the symbol you choose. Only the attributes that are appropriate for the selected symbol are available.
  • A geometric tolerance symbol can have any number of frames.
  • The pointer changes to Pointer_GTOL.gif when it is on a geometric tolerancing symbol.
  • You can add multiple symbols without closing the dialog box.
  • You can display multiple leaders. Video: Multiple Leaders
  • You can add more leaders to an existing symbol by holding down Ctrl and dragging a leader attachment point.
  • To edit an existing symbol, double-click the symbol, or right-click the symbol and select Properties.
  • When you drag the leader of a geometric tolerance symbol off a model edge, an automatic witness line is created.
