Angular Running Dimensions

Angular running dimensions are a set of dimensions measured from a zero-degree dimension in a drawing or sketch.

Angular running dimensions meet ISO-129-1: 2004 rules while providing additional styling options.

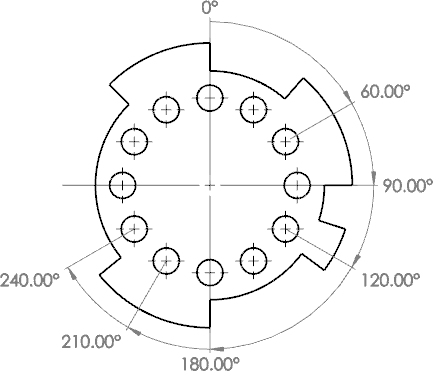

Use angular running dimensions for arc or circle models. In this example, you create and modify angular running dimensions for a flange.

  1. Creating Angular Running Dimensions
    You can create angular running dimensions for an arc or circle in a drawing or sketch.
  2. Adding Angular Dimensions Along the Same Running Dimension
    You can add more angular dimensions along the same angular running dimension.
  3. Modifying Angular Running Dimensions
    You can modify existing angular running dimensions.
  4. Displaying Angular Running Dimensions
    You can change the display style of existing angular running dimensions.
