Examining the Shadows

Next, you drag the timeline and examine the shadow exposure.

  1. To zoom in on the roof area, click Zoom to Area tool_Zoom_to_Area_View.png (View toolbar).

  2. Drag the timeline and inspect the shadow movement throughout the day:

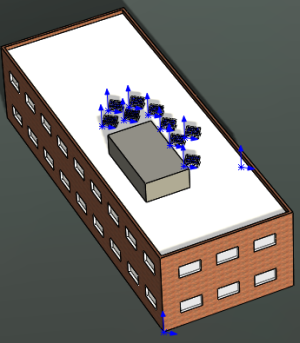

    1 sec step4_drag1sec_solar.png

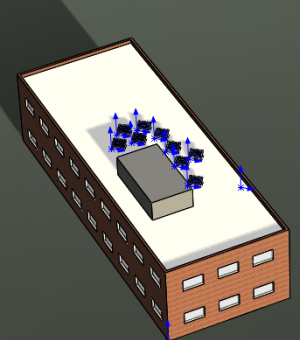

    2 sec step4_drag2sec_solar.png

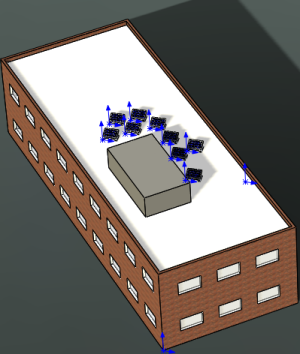

    3 sec step4_drag3sec_solar.png

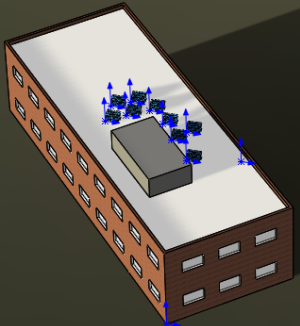

    5 sec step4_drag5sec_solar.png

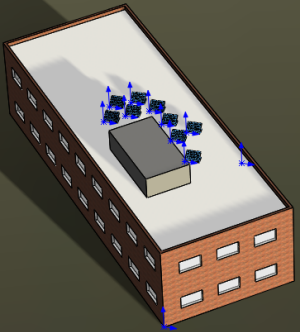

    6 sec step4_drag6sec_solar.png

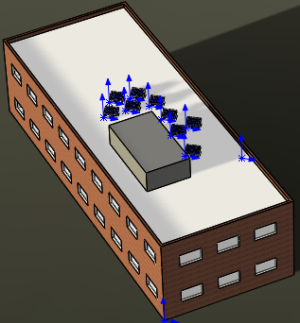

    8 sec step4_drag8sec_shadow_solar.png

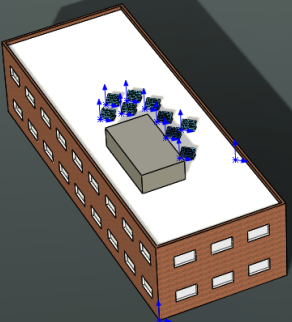

    9 sec step4_drag9sec_solar.png
    The best locations for the panels appear to be south-facing, away from the southwest corner of the building, and outside of the shadows of other panels and the HVAC.
