Deleting Absorbed and Child Features

To delete absorbed and child features in a model:

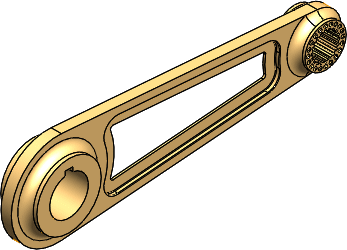

  1. Open install_dir\samples\whatsnew\parts\arm.sldprt.

    arm

  2. In the FeatureManager design tree, right-click Cut-Extrude2 and select Delete delete.gif.

    The Confirm Delete dialog box appears in Basic mode and lists all dependent items related to Cut-Extrude2. You cannot delete items individually in Basic mode.

  3. Click Advanced.

    The dialog updates from Basic to Advanced mode. This mode lets you select which items to keep and which to delete.

  4. Click to clear Fillet2.

    Mirror1, Sketch7, and Cut-Extrude4 are selected for deletion.

  5. Click Yes.

    A warning displays for Fillet2. You can ignore the error or repair the model before continuing with your work.
