Access Bill of Materials Example (VB.NET)

This example shows how to access the Bill of Materials (BOM) of a file in the vault.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SolidWorks Enterprise PDM, see Using .NET Framework 4.0 in Stand-alone Applications.

'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio 2010.
'    a. Click File > New > Project > Visual Basic > Windows Forms Application.
'    b. Type EdmBOM in Name.
'    c. Click Browse and navigate to the folder where to create the project.
'    d. Click OK.
'    e. Click Show All Files in the Solution Explorer toolbar and expand
'       Form1.vb in the Solution Explorer.
'    f. Replace the code in Form1.vb with this code.
'    g. To create the form, replace the code in Form1.Designer.vb with
'       this code.
' 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
'    name in the Solution Explorer, click Add Reference, click
'    Assemblies > Framework in the left-side panel, browse to the top folder of
'    your SolidWorks Enterprise PDM installation, locate and click
'    EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
'    Embed Interop Types to False to handle methods that pass arrays of
'    structures.
' 4. Ensure that the vault contains the BOM layout.
'    To inspect the existing layouts:
'    a. Open the SolidWorks Enterprise PDM Administration tool.
'    b. Log into vault_name.
'    c. Expand vault_name > Bills of Materials.
'    d. Verify that layout, BOM, exists.
' 5. Ensure that an assembly and its parts exist in the root folder of
'    the vault in default configuration, @.
' 6. Ensure that one or more named Bills of Materials exist for the assembly.
'    a. Open Windows Explorer on a vault_name view.
'    b. Click the assembly.
'    c. Click the Bill of Materials tab.
'    d. Click BOM.
'    e. If a named Bill of Materials does not exist in the BOM list:
'       1. Click Save > Save As in the tab toolbar.
'       2. In the Save As dialog, click Save.
' 7. Click Debug > Start Debugging or press F5.
'
' Postconditions:

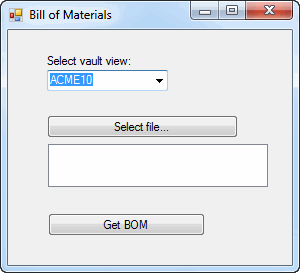

' 1. The Bill of Materials dialog box displays.
'    a. Select a vault_name view.
'    b. Click Select file.
'    c. In the Select File dialog:
'       1. Click the assembly specified in Preconditions step 5.
'       2. Click Open.
'    d. Click Get BOM.
'       Displays message boxes containing:
'       * Information about all named BOMs of the assembly.
'       * Version information for the named BOMs.
'       * Information about all BOM layouts in the vault.
'       * Row and column information about a BOM view in the BOM layout
'         for the selected assembly in its @ configuration.
'    e. Click OK in the message boxes.
' 2. Close the Bill of Materials dialog box.
'----------------------------------------------------------------------------
'Form1.vb

Imports System.IO
Imports System.Xml.Serialization
Imports System.Collections
Imports System.Collections.Generic
Imports System.Data
Imports System.Diagnostics
Imports System.Windows.Forms
Imports System.ComponentModel
Imports EPDM.Interop.epdm

Public Class Form1

    Private vault1 As IEdmVault5 = Nothing
    Dim aFile As IEdmFile7
    Dim bom As IEdmBom
    Dim bomMgr As IEdmBomMgr
    Dim bomView As IEdmBomView

    Public Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

        Try
            Dim vault1 As IEdmVault5 = New EdmVault5()
            Dim vault As IEdmVault8 = DirectCast(vault1, IEdmVault8)
            Dim Views As EdmViewInfo() = Nothing

            vault.GetVaultViews(Views, False)
            VaultsComboBox.Items.Clear()
            For Each View As EdmViewInfo In Views
                VaultsComboBox.Items.Add(View.mbsVaultName)
            Next
            If VaultsComboBox.Items.Count > 0 Then
                VaultsComboBox.Text = DirectCast(VaultsComboBox.Items(0), String)
            End If
        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub

    Public Sub SelectFiles_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles SelectFiles.Click
        Try
            File1List.Items.Clear()

            Dim vault2 As IEdmVault7 = Nothing
            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If
            vault2 = DirectCast(vault1, IEdmVault7)

            If Not vault1.IsLoggedIn Then
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If

            'Set the initial directory in the Select File dialog
            OpenFileDialog1.InitialDirectory = vault1.RootFolderPath

            'Show the Select File dialog
            Dim DialogResult As System.Windows.Forms.DialogResult = Nothing
            DialogResult = OpenFileDialog1.ShowDialog()

            If Not (DialogResult = System.Windows.Forms.DialogResult.OK) Then
                ' do nothing
            Else
                For Each FileName As String In OpenFileDialog1.FileNames
                    File1List.Items.Add(FileName)
                    aFile = vault1.GetFileFromPath(FileName)
                Next
            End If

        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub

    Public Sub GetBOM_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles GetBOM.Click
        Try

            Dim vault2 As IEdmVault7 = Nothing
            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If
            vault2 = DirectCast(vault1, IEdmVault9)
            If Not vault1.IsLoggedIn Then
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If

            If Not IsNothing(aFile) Then

               ' Get named BOMs and their versions for the selected file
               Dim derivedBOMs() As EdmBomInfo = Nothing
               aFile.GetDerivedBOMs(derivedBOMs)

              Dim arrSize As Integer
               Dim ppoVersions() As EdmBomVersion = Nothing
               Dim i As Integer = 0
               Dim j As Integer = 0
               Dim id As Integer
               Dim str As String = ""
               Dim verstr As String = ""
               Dim verArrSize As Integer
               arrSize = derivedBOMs.Length

               While i < arrSize
                id = derivedBOMs(i).mlBomID
                bom = vault2.GetObject(EdmObjectType.EdmObject_BOM, id)
                str = "Named BOM: " & derivedBOMs(i).mbsBomName & vbLf & "Check-out user: " & bom.CheckOutUserID & vbLf & "Current state: " & bom.CurrentState.Name & vbLf & "Current version: " & bom.CurrentVersion & vbLf & "ID: " & bom.FileID & vbLf & "Is checked out: " & bom.IsCheckedOut
                MessageBox.Show(str)
                bom.GetVersions(ppoVersions)
                verArrSize = ppoVersions.Length
                While j < verArrSize
                    verstr = "BOM version: " & vbLf & "Type as defined in EdmBomVersionType: " & ppoVersions(j).meType & vbLf & "Version number: " & ppoVersions(j).mlVersion & vbLf & "Date: " & ppoVersions(j).moDate & vbLf & "Label: " & ppoVersions(j).mbsTag & vbLf & "Comment: " & ppoVersions(j).mbsComment
                    MessageBox.Show(verstr)
                    j = j + 1
                End While
                i = i + 1
               End While

               ' Get a BOM view with the specified layout
              bomMgr = vault2.CreateUtility(EdmUtility.EdmUtil_BomMgr)
               Dim ppoRetLayouts() As EdmBomLayout = Nothing
               Dim ppoRetLayout As EdmBomLayout
               bomMgr.GetBomLayouts(ppoRetLayouts)
               i = 0
               arrSize = ppoRetLayouts.Length
               str = ""
               While i < arrSize
                ppoRetLayout = ppoRetLayouts(i)
                str = "BOM Layout " & i & ": " & vbLf & ppoRetLayout.mbsLayoutName & vbLf & "ID: " & ppoRetLayout.mlLayoutID
                If ppoRetLayout.mbsLayoutName = "BOM" Then
                    bomView = aFile.GetComputedBOM(ppoRetLayout.mbsLayoutName, 0, "@", EdmBomFlag.EdmBf_AsBuilt + EdmBomFlag.EdmBf_ShowSelected)
                End If
                MessageBox.Show(str)
                i = i + 1
               End While

               ' Display BOM view row and column information
              Dim ppoRows() As Object = Nothing
               Dim ppoRow As IEdmBomCell
               bomView.GetRows(ppoRows)
               i = 0
               arrSize = ppoRows.Length
               str = ""
               While i < arrSize
                ppoRow = ppoRows(i)
                str = "BOM Row " & i & ": " & vbLf & "Item ID: " & ppoRow.GetItemID & vbLf & "Path name: " & ppoRow.GetPathName & vbLf & "Tree level: " & ppoRow.GetTreeLevel & vbLf & " Is locked? " & ppoRow.IsLocked
                MessageBox.Show(str)
                i = i + 1
               End While

               Dim ppoColumns() As EdmBomColumn = Nothing
               bomView.GetColumns(ppoColumns)
               i = 0
               arrSize = ppoColumns.Length
               str = ""
               While i < arrSize
                str = "BOM Column " & i & ": " & vbLf & "Header: " & ppoColumns(i).mbsCaption & vbLf & "Column type as defined in EdmBomColumnType: " & ppoColumns(i).meType & vbLf & "ID: " & ppoColumns(i).mlColumnID & vbLf & "Flags: " & ppoColumns(i).mlFlags & vbLf & "Variable ID: " & ppoColumns(i).mlVariableID & vbLf & "Variable type as defined in EdmVariableType: " & ppoColumns(i).mlVariableType & vbLf & "Column width: " & ppoColumns(i).mlWidth
                MessageBox.Show(str)
                i = i + 1
               End While
         End If
        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try

    End Sub

End Class

'Form1.Designer.vb

<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class Form1
    Inherits System.Windows.Forms.Form

    'Form overrides dispose to clean up the component list.
    <System.Diagnostics.DebuggerNonUserCode()> _
    Protected Overrides Sub Dispose(ByVal disposing As Boolean)
        Try
            If disposing AndAlso components IsNot Nothing Then
                components.Dispose()
            End If
        Finally
            MyBase.Dispose(disposing)
        End Try
    End Sub

    'Required by the Windows Form Designer
    Private components As System.ComponentModel.IContainer

    'NOTE: The following procedure is required by the Windows Form Designer
    'It can be modified using the Windows Form Designer.
    'Do not modify it using the code editor.
    <System.Diagnostics.DebuggerStepThrough()> _
    Private Sub InitializeComponent()
        Me.VaultsLabel = New System.Windows.Forms.Label()
        Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
        Me.SelectFiles = New System.Windows.Forms.Button()
        Me.File1List = New System.Windows.Forms.ListBox()
        Me.GetBOM = New System.Windows.Forms.Button()
        Me.OpenFileDialog1 = New System.Windows.Forms.OpenFileDialog()
        Me.SuspendLayout()
        '
        'VaultsLabel
        '
        Me.VaultsLabel.AutoSize = True
        Me.VaultsLabel.Location = New System.Drawing.Point(36, 24)
        Me.VaultsLabel.Name = "VaultsLabel"
        Me.VaultsLabel.Size = New System.Drawing.Size(91, 13)
        Me.VaultsLabel.TabIndex = 0
        Me.VaultsLabel.Text = "Select vault view:"
        '
        'VaultsComboBox
        '
        Me.VaultsComboBox.FormattingEnabled = True
        Me.VaultsComboBox.Location = New System.Drawing.Point(39, 40)
        Me.VaultsComboBox.Name = "VaultsComboBox"
        Me.VaultsComboBox.Size = New System.Drawing.Size(121, 21)
        Me.VaultsComboBox.TabIndex = 1
        '
        'SelectFiles
        '
        Me.SelectFiles.Location = New System.Drawing.Point(39, 85)
        Me.SelectFiles.Name = "SelectFiles"
        Me.SelectFiles.Size = New System.Drawing.Size(191, 23)
        Me.SelectFiles.TabIndex = 2
        Me.SelectFiles.Text = "Select file..."
        Me.SelectFiles.UseVisualStyleBackColor = True
        '
        'File1List
        '
        Me.File1List.FormattingEnabled = True
        Me.File1List.HorizontalScrollbar = True
        Me.File1List.Location = New System.Drawing.Point(40, 114)
        Me.File1List.Name = "File1List"
        Me.File1List.SelectionMode = System.Windows.Forms.SelectionMode.MultiExtended
        Me.File1List.Size = New System.Drawing.Size(220, 43)
        Me.File1List.TabIndex = 4
        '
        'GetBOM
        '
        Me.GetBOM.Location = New System.Drawing.Point(40, 183)
        Me.GetBOM.Name = "GetBOM"
        Me.GetBOM.Size = New System.Drawing.Size(157, 23)
        Me.GetBOM.TabIndex = 6
        Me.GetBOM.Text = "Get BOM"
        Me.GetBOM.UseVisualStyleBackColor = True
        '
        'OpenFileDialog1
        '
        Me.OpenFileDialog1.FileName = "OpenFileDialog1"
        Me.OpenFileDialog1.Title = "Select File"
        '
        'Form1
        '
        Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
        Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
        Me.ClientSize = New System.Drawing.Size(284, 235)
        Me.Controls.Add(Me.GetBOM)
        Me.Controls.Add(Me.File1List)
        Me.Controls.Add(Me.SelectFiles)
        Me.Controls.Add(Me.VaultsComboBox)
        Me.Controls.Add(Me.VaultsLabel)
        Me.Name = "Form1"
        Me.Text = "Bill of Materials"
        Me.ResumeLayout(False)
        Me.PerformLayout()

    End Sub
    Friend WithEvents VaultsLabel As System.Windows.Forms.Label
    Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
    Friend WithEvents SelectFiles As System.Windows.Forms.Button
    Friend WithEvents File1List As System.Windows.Forms.ListBox
    Friend WithEvents GetBOM As System.Windows.Forms.Button
    Friend WithEvents OpenFileDialog1 As System.Windows.Forms.OpenFileDialog

End Class

Search 'Access Bill of Materials Example (VB.NET)' in the SOLIDWORKS Knowledge Base.

Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:		Feedback on Help Topics
Page:		Access Bill of Materials Example (VB.NET)
*Comment:
*		I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Cancel

Print Topic

Select the scope of content to print:

This topic and all topics linked from this topic

Just this topic

This topic and only immediate topics under it

This selected topic and all subtopics

Cancel

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

Never show this message again

Web Help Content Version: API Help (English only) 2014 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.
