Add Users Example (C#)
This example shows how to add users to a vault by
deserializing an XML file containing user data.
NOTE: If using the .NET Framework 4.0 primary interop assembly
provided with SolidWorks Enterprise PDM, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//---------------------------------------------------------------------------
// Preconditions:
// 1. Create an XML file for this example.
// a. Open a text editor like Notepad and copy and paste this code
// into the editor.
// b. Save the file as User.xml and remember where you save the file.
// 2. Start Microsoft Visual Studio 2010.
// a. Click File > New > Project > C# > Windows Forms Application.
// b. Type AddUsersCSharp in Name.
// c. Click Browse and navigate to the folder where to
// create the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer toolbar and
// expand Form1.cs in the Solution Explorer.

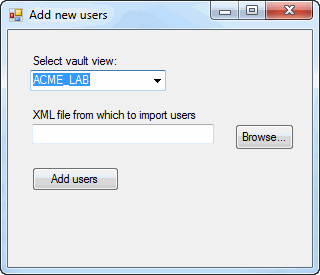

// f. Create a form similar to the form shown above and change:
// 1. Top label to VaultsLabel.
// 2. Combo box to VaultsCombobox.
// 3. Second label to XmlLabel.
// 4. Text box to XmlTextBox.
// 5. Browse button to BrowseButton.
// 6. Add users button to AddUsersButton.
// g. Replace the code in Form1.cs with this code.
// h. Replace the code in Form1.Designer.cs with this code.
// i. Right-click the AddUsersCSharp project name in the Solution Explorer.
// 1. Click Add > Class > Class.
// 2. Type EdmVaultSingleton.cs in Name.
// 3. Click Add.
// 4. Replace the code in EdmVaultSingleton.cs with this code.
// j. Right-click the AddUsersCSharp project name in the Solution Explorer.
// 1. Click Add > Class > Class.
// 2. Type User.cs in Name.
// 3. Click Add.
// 4. Replace the code in User.cs with this code.
// 3. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference, click
// Assemblies > Framework in the left-side panel, browse to the top folder of your
// SolidWorks Enterprise PDM installation, locate and click
// EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
// 4. Right-click EPDM.Interop.epdm in References, click Properties, and set
// Embed Interop Types to False to handle methods that pass arrays of
// structures.
// 5. Click Debug > Start Debugging or press F5.
//
// Postconditions:
// 1. Displays a dialog.
// 2. Select a vault.
// 3. Click Browse, locate and select User.xml, and click Open.
// 4. Click Add users.
// A message box is displayed showing the names of the new users added
// to the vault.
// 5. Click OK to close the message box.
// 6. Close the dialog.
// 7. Start and log into the SolidWorks Enterprise PDM Administration
// tool as Admin.
// 8. Expand the vault where the new users were added.
// 9. Expand Users to see the names of the new users.
// 10. Double-click jdoe.
// a. Examine the properties.
// b. Click Administrative Permissions and examine the permissions.
// c. Click OK.
// 11. Double-click jsmith and repeat steps 10a - 10c.
//----------------------------------------------------------------------------
<?xml version="1.0" encoding="utf-8"?>
<ArrayOfAnyType xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
<anyType xsi:type="User">
<sn>Doe</sn>
<givenName>John</givenName>
<title>Designer</title>
<cn>John Doe</cn>
<username>jdoe@yourcompany.com</username>
</anyType>
<anyType xsi:type="User">
<sn>Smith</sn>
<givenName>Jane</givenName>
<title>Manager</title>
<cn>Jane Smith</cn>
<username>jsmith@yourcompany.com</username>
</anyType>
</ArrayOfAnyType>
//Form1.cs
using System;
using System.Collections;
using System.Data;
using System.Diagnostics;
using System.IO;
using System.Xml.Serialization;
using System.Windows.Forms;
using EPDM.Interop.epdm;
using System.Xml;
using System.Runtime.InteropServices;
namespace AddUsersCSharp
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
public void BrowseButton_Click(System.Object sender, System.EventArgs e)
{
try
{
DialogResult dlgResult = XmlOpenFileDialog.ShowDialog();
if (dlgResult == DialogResult.Cancel)
{
return;
}
XmlTextBox.Text = XmlOpenFileDialog.FileName;
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void AddUsersButton_Click(System.Object sender, System.EventArgs e)
{
StreamReader StrReader = null;
try
{
//Deserialize users from an XML file
Type[] ExtraTypes = { Type.GetType("AddUsersCSharp.User") };
XmlSerializer XmlSer = new XmlSerializer(Type.GetType("System.Collections.ArrayList"), ExtraTypes);
StrReader = new StreamReader(XmlTextBox.Text);
ArrayList NewUsers = (ArrayList)XmlSer.Deserialize(StrReader);
//Obtain the only instance of the IEdmVaultObject
IEdmVault5 vault = EdmVaultSingleton.Instance;
if (!vault.IsLoggedIn)
{
//Log into selected vault as the current user
vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Assign IEdmVault object to the IEdmUserMgr7 object
IEdmUserMgr7 UsrMgr = (IEdmUserMgr7)vault;
//Declare EdmUserData array to hold new user data
EdmUserData2[] UserData = new EdmUserData2[NewUsers.Count];
//Set the EdmUserData members for each new user
for (int i = 0; i <= NewUsers.Count - 1; i++)
{
if (NewUsers[i] != null)
{
UserData[i].mbsCompleteName = (NewUsers[i] as User).cn;
UserData[i].mbsEmail = (NewUsers[i] as User).username;
UserData[i].mbsInitials = (NewUsers[i] as User).givenName.Substring(0, 1) + (NewUsers[i] as User).sn.Substring(0, 1);
UserData[i].mbsUserName = (NewUsers[i] as User).username.Split('@')[0];
//Return user's IEdmUser6 interface in mpoUser
UserData[i].mlFlags = (int)EdmUserDataFlags.Edmudf_GetInterface;
//Add this user even if others cannot be added
UserData[i].mlFlags += (int)EdmUserDataFlags.Edmudf_ForceAdd;
//Set permissions
EdmSysPerm[] perms = new EdmSysPerm[3];
perms[0] = EdmSysPerm.EdmSysPerm_EditUserMgr;
perms[1] = EdmSysPerm.EdmSysPerm_EditReportQuery;
perms[2] = EdmSysPerm.EdmSysPerm_MandatoryVersionComments;
UserData[i].moSysPerms = perms;
}
}
//Add the users to the vault
UsrMgr.AddUsers2(ref UserData);
string msg = "";
foreach (EdmUserData2 usr in UserData)
{
if (usr.mhStatus == 0)
{
msg += "Created user \"" + usr.mpoUser.Name + "\" successfully. ID = " + usr.mpoUser.ID.ToString() + "\n";
}
else
{
IEdmVault11 vault2 = (IEdmVault11)vault;
msg += "Error creating user \"" + usr.mbsUserName + "\" - " + vault2.GetErrorMessage(usr.mhStatus) + "\n";
}
}
MessageBox.Show(msg);
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
finally
{
if ((StrReader != null))
{
StrReader.Close();
}
}
}
public void AddUsers_Load(System.Object sender, System.EventArgs e)
{
try
{
//Obtain the only instance of the IEdmVault object
IEdmVault8 vault = (IEdmVault8)EdmVaultSingleton.Instance;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
}
}
namespace AddUsersCSharp
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.VaultsLabel = new System.Windows.Forms.Label();
this.VaultsComboBox = new System.Windows.Forms.ComboBox();
this.XmlLabel = new System.Windows.Forms.Label();
this.XmlTextBox = new System.Windows.Forms.TextBox();
this.BrowseButton = new System.Windows.Forms.Button();
this.AddUsersButton = new System.Windows.Forms.Button();
this.XmlOpenFileDialog = new System.Windows.Forms.OpenFileDialog();
this.SuspendLayout();
//
//XmlOpenFileDialog
//
this.XmlOpenFileDialog.Filter = "XML files|*.XML";
//
//
// VaultsLabel
//
this.VaultsLabel.AutoSize = true;
this.VaultsLabel.Location = new System.Drawing.Point(23, 34);
this.VaultsLabel.Name = "VaultsLabel";
this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
this.VaultsLabel.TabIndex = 0;
this.VaultsLabel.Text = "Select vault view:";
//
// VaultsComboBox
//
this.VaultsComboBox.FormattingEnabled = true;
this.VaultsComboBox.Location = new System.Drawing.Point(26, 62);
this.VaultsComboBox.Name = "VaultsComboBox";
this.VaultsComboBox.Size = new System.Drawing.Size(171, 21);
this.VaultsComboBox.TabIndex = 1;
//
// XmlLabel
//
this.XmlLabel.AutoSize = true;
this.XmlLabel.Location = new System.Drawing.Point(26, 111);
this.XmlLabel.Name = "XmlLabel";
this.XmlLabel.Size = new System.Drawing.Size(173, 13);
this.XmlLabel.TabIndex = 2;
this.XmlLabel.Text = "XML file from which to import users:";
//
// XmlTextBox
//
this.XmlTextBox.Location = new System.Drawing.Point(26, 139);
this.XmlTextBox.Name = "XmlTextBox";
this.XmlTextBox.Size = new System.Drawing.Size(171, 20);
this.XmlTextBox.TabIndex = 3;
//
// BrowseButton
//
this.BrowseButton.Location = new System.Drawing.Point(203, 135);
this.BrowseButton.Name = "BrowseButton";
this.BrowseButton.Size = new System.Drawing.Size(75, 23);
this.BrowseButton.TabIndex = 4;
this.BrowseButton.Text = "Browse...";
this.BrowseButton.UseVisualStyleBackColor = true;
this.BrowseButton.Click += new System.EventHandler(BrowseButton_Click);
//
// AddUsersButton
//
this.AddUsersButton.Location = new System.Drawing.Point(29, 189);
this.AddUsersButton.Name = "AddUsersButton";
this.AddUsersButton.Size = new System.Drawing.Size(75, 23);
this.AddUsersButton.TabIndex = 5;
this.AddUsersButton.Text = "Add users";
this.AddUsersButton.UseVisualStyleBackColor = true;
this.AddUsersButton.Click += new System.EventHandler(this.AddUsersButton_Click);
//
// Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(284, 262);
this.Controls.Add(this.AddUsersButton);
this.Controls.Add(this.BrowseButton);
this.Controls.Add(this.XmlTextBox);
this.Controls.Add(this.XmlLabel);
this.Controls.Add(this.VaultsComboBox);
this.Controls.Add(this.VaultsLabel);
this.Name = "Form1";
this.Text = "Add new users";
this.Load += new System.EventHandler(this.AddUsers_Load);
this.ResumeLayout(false);
this.PerformLayout();
}
#endregion
private System.Windows.Forms.Label VaultsLabel;
private System.Windows.Forms.ComboBox VaultsComboBox;
private System.Windows.Forms.Label XmlLabel;
private System.Windows.Forms.TextBox XmlTextBox;
private System.Windows.Forms.Button BrowseButton;
private System.Windows.Forms.Button AddUsersButton;
private System.Windows.Forms.OpenFileDialog XmlOpenFileDialog;
}
}
//EdmVaultSingleton.cs
using System;
using System.Collections;
using System.Diagnostics;
using System.Threading;
using EPDM.Interop.epdm;
namespace AddUsersCSharp
{
public class EdmVaultSingleton
{
private static EdmVault5 mInstance = null;
private static object mLockObj = new object();
private EdmVaultSingleton()
{
}
public static EdmVault5 Instance
{
get
{
try
{
if (mInstance == null)
{
Monitor.Enter(mLockObj);
if (mInstance == null)
{
mInstance = new EdmVault5();
}
Monitor.Exit(mLockObj);
}
}
catch (Exception ex)
{
Monitor.Exit(mLockObj);
}
return mInstance;
}
}
}
}
//User.cs
using System;
using System.Collections;
using System.Diagnostics;
namespace AddUsersCSharp
{
public class User
{
//First name
private string mSn;
//Last name
private string mGivenName;
//Title
private string mTitle;
//Complete name
private string mCn;
//Email address
private string mUsername;
public User()
{
}
public string sn
{
get { return mSn; }
set { mSn = value; }
}
public string givenName
{
get { return mGivenName; }
set { mGivenName = value; }
}
public string title
{
get { return mTitle; }
set { mTitle = value; }
}
public string cn
{
get { return mCn; }
set { mCn = value; }
}
public string username
{
get { return mUsername; }
set { mUsername = value; }
}
}
}
