Add Card Variables to Vault Example (VB.NET)

This example shows how to add card variables to a vault and edit them.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SolidWorks Enterprise PDM, see Using .NET Framework 4.0 in Stand-alone Applications.

' Preconditions:
' 1. Start Microsoft Visual Studio 2010.
'    a. Click File > New > Project > Visual Basic > Windows Forms Application.
'    b. Type AddEditVars in Name.
'    c. Click Browse and navigate to the folder where to create
'       the project.
'    d. Click OK
'    e. Click Show All Files in the Solution Explorer toolbar and expand
'       Form1.vb in the Solution Explorer.
'    f. Replace the code in Form1.vb with this code.
'    g. To create the form, replace the code in Form1.Designer.vb with this code.
' 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
'    name in the Solution Explorer, click Add Reference, click
'    Assemblies > Framework in the left-side panel, browse to the top folder of
'    your SolidWorks Enterprise PDM installation, locate and click
'    EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
'    Embed Interop Types to False to handle methods that pass arrays of
'    structures.
' 4. Click Debug > Start Debugging or press F5.
' Postconditions:

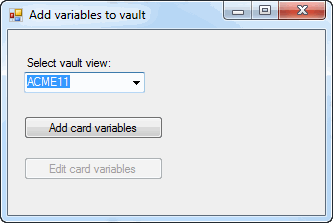

' 1. Displays the Add variables to vault dialog box.
' 2. Select a vault view.
' 3. Click Add card variables
'    a. Adds two card variables, MyNewVar and MySecondVar, to the vault.
'    b. Displays a message box with the IDs of the new variables.
'    c. Click OK.
' 4. Click Edit card variables.
'    a. Displays the Edit Variables dialog box.
'    b. Click OK.
'    c. Displays a message box.
'    d. Click OK.

' 5. Close the Add variables to vault dialog box.

Imports System.IO
Imports System.Xml.Serialization
Imports System.Collections
Imports System.Collections.Generic
Imports System.Data
Imports System.Diagnostics
Imports System.Windows.Forms
Imports System.ComponentModel
Imports EPDM.Interop.epdm
Public Class Form1
    Private vault1 As IEdmVault5 = Nothing
    Dim item As IEdmItem
    Dim fileInt As IEdmFile8
    Public Sub Form1_Load(ByVal sender As System.ObjectByVal e As System.EventArgsHandles MyBase.Load
            Dim vault1 As IEdmVault5 = New EdmVault5()
            Dim vault As IEdmVault8 = DirectCast(vault1, IEdmVault8)
            Dim Views As EdmViewInfo() = Nothing
            vault.GetVaultViews(Views, False)
            For Each View As EdmViewInfo In Views
            If VaultsComboBox.Items.Count > 0 Then
                VaultsComboBox.Text = DirectCast(VaultsComboBox.Items(0), String)
            End If
            Button1.Enabled = False
        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
        End Try
    End Sub
    Public Sub AddVaultVars_Click(ByVal sender As System.ObjectByVal e As System.EventArgsHandles AddVaultVars.Click
        'Add card variables to vault
            Dim vault2 As IEdmVault11 = Nothing
            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If
            vault2 = DirectCast(vault1, IEdmVault11)
            If Not vault1.IsLoggedIn Then
                'Log into selected vault as the current user
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If
            Dim poVarMgr As IEdmVariableMgr6
            poVarMgr = vault2.CreateUtility(EdmUtility.EdmUtil_VariableMgr)
            Dim aoNewVars(1) As EdmVariableData 'Array with 2 variables
            'Set some properties for the first variable
            aoNewVars(0).mbsVariableName = "MyNewVar"
            aoNewVars(0).meType = EdmVariableType.EdmVarType_Text
            aoNewVars(0).mlEdmVariableFlags = EdmVariableFlags.EdmVar_Mandatory
            Dim aoAttributes(0) As EdmAttributeData
            aoAttributes(0).mbsBlockName = "DrawingBorder"
            aoAttributes(0).mbsAttribName = "PartNumber"
            aoAttributes(0).mbsExtensions = "DWG,DXF"
            aoNewVars(0).mpoAttributes = aoAttributes
            'Set some properties for the second variable
            aoNewVars(1).mbsVariableName = "MySecondVar"
            aoNewVars(1).meType = EdmVariableType.EdmVarType_Date
            'Add the variables
            'Show the IDs of the new variables
            Dim sMsg As String
            sMsg = ""
            Dim iIdx As Integer
            iIdx = LBound(aoNewVars)
            While iIdx <= UBound(aoNewVars)
                sMsg = sMsg + aoNewVars(iIdx).mbsVariableName + " has ID " + CStr(aoNewVars(iIdx).mlVariableID) + vbLf
                iIdx = iIdx + 1
            End While
            Button1.Enabled = True
        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
        End Try
    End Sub
    Private Sub Button1_Click(ByVal sender As System.ObjectByVal e As System.EventArgsHandles Button1.Click
        'Edit card variables
            Dim vault2 As IEdmVault11 = Nothing
            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If
            vault2 = DirectCast(vault1, IEdmVault11)
            If Not vault1.IsLoggedIn Then
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If
            Dim varMgr As IEdmVariableMgr5
            varMgr = vault2
            If varMgr.EditVariables(Me.Handle.ToInt32()) Then
                MessageBox.Show("An update was made!")
                MessageBox.Show("No changes were made.")
            End If
        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
        End Try
    End Sub
End Class
