NOTE: If using the .NET Framework 4.0 primary interop assembly
provided with SolidWorks Enterprise PDM, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//--------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio 2010.
// a. Click File > New > Project > Visual C# > Windows Forms Application.
// b. Type AddRemoveUsersGroupsCSharp in Name.
// c. Click Browse and navigate to the folder where to create the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer toolbar and expand
// Form1.cs in the Solution Explorer.
// f. Replace the code in Form1.cs with this code.
// g. To create the form, replace the code in Form1.Designer.cs with
// this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference, click
// Assemblies > Framework in the left-side panel, browse to the top folder of
// your SolidWorks Enterprise PDM installation, locate and click
// EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
// 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
// Embed Interop Types to False to handle methods that pass arrays of
// structures.
// 4. Ensure that the following folder and group exist in the targeted vault:
// * Folder in the vault root named Test.
// * Group named Management.
// 5. Click Debug > Start Debugging or press F5.
//
//Postconditions:

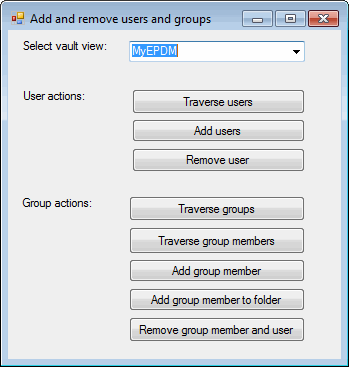

// 1. Displays a dialog.
// 2. Select a vault.
// 3. Perform these user actions. Click OK to close each message box.
// a. Click Traverse users.
// Displays a message box showing the users in the vault.
// b. Click Add users.
// Displays a message box informing you that rrabbit
// and efudd were added as users to the vault.
// c. Click Traverse users to verify that rrabbit and efudd
// were added to the vault.
// Displays a message box showing the users in the vault.
// d. Click Remove user.
// Displays a message box informing you that rrabbit was
// removed from the vault.
// e. Click Traverse users to verify that rrabbit was removed
// from the vault.
// Displays a message box showing the users in the vault.
// 4. Perform these group actions. Click OK to close each message box.
// a. Click Traverse groups.
// Displays a message box showing the groups in the vault.
// b. Click Traverse group members.
// Displays a message box showing the users in the groups
// in the vault.
// c. Click Add group member.
// Displays a message box informing you that efudd
// was added to the Management group.
// d. Click Traverse group members to verify that
// efudd is shown in the Management group.
// Displays a message box showing the users in the groups
// in the vault.
// e. Click Add group member to folder.
// Displays a message box informing you that efudd in
// the Management group was added to the Test folder.
// f. To verify the previous step:
// 1. Open a Windows Explorer window.
// 2. Right-click the Test folder in the selected vault
// and click Properties to open the Test Properties
// dialog box.
// 3. Click Group Memberships.
// 4. Click Management to verify that efudd is selected.
// 5. Click OK to close the Test Properties dialog box.
// g. Click Remove group member and user.
// Displays a message box informing you that efudd was
// removed from the vault.
// h. Click Traverse group members to verify that
// efudd was removed from the Management group.
// Displays a message box showing the users in the
// groups in the vault.
// i. Click Traverse users to verify that efudd was
// removed as a user from the vault.
// Displays a message box showing the users in the vault.
// 5. Close the dialog.
// Sends two SolidWorks Enterprise PDM messages
// to logged-in users and group members who have
// permission to update users and groups.
// 6. To open these messages, click:
// * the SolidWorks Enterprise PDM tray icon.
// - or -
// * Tools > Inbox in Windows Explorer.
//--------------------------------------------------------------------
//Form1.cs
using System;
using System.Windows.Forms;
using EPDM.Interop.epdm;
namespace AddRemoveUsersGroupsCSharp
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
IEdmVault8 vault;
EdmVault5 vault1;
EdmUserData2[] UserData = new EdmUserData2[2];
IEdmUserMgr7 UsrMgr;
IEdmUser9 user;
IEdmUserGroup8 mngmtGroup;
EdmMemberFolder[] folderMembers = new EdmMemberFolder[1];
private void AddRemoveUsersGroupsCSharp_Load(System.Object sender, System.EventArgs e)
{
vault1 = new EdmVault5();
vault = (IEdmVault8)vault1;
EdmViewInfo[] Views = {};
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views) {
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0) {
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
private void TraverseUsersButton_Click(System.Object sender, System.EventArgs e)
{
try {
if (!vault.IsLoggedIn) {
//Log into selected vault as the current user
vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
UsrMgr = (IEdmUserMgr7)vault;
//Traverse users
string Users = "";
IEdmPos5 UserPos = default(IEdmPos5);
UserPos = UsrMgr.GetFirstUserPosition();
while (!UserPos.IsNull) {
user = (IEdmUser9)UsrMgr.GetNextUser(UserPos);
Users = Users + user.Name + "\n";
}
MessageBox.Show(Users, vault.Name + " Vault Users", MessageBoxButtons.OK, MessageBoxIcon.Information);
} catch (System.Runtime.InteropServices.COMException ex) {
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
} catch (Exception ex) {
MessageBox.Show(ex.Message);
}
}
private void TraverseGroupsButton_Click(System.Object sender, System.EventArgs e)
{
try {
if (!vault.IsLoggedIn) {
//Log into selected vault as the current user
vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
UsrMgr = (IEdmUserMgr7)vault;
//Traverse groups
string Groups = "";
IEdmPos5 UserGroupPos = default(IEdmPos5);
UserGroupPos = UsrMgr.GetFirstUserGroupPosition();
while (!UserGroupPos.IsNull) {
mngmtGroup = (IEdmUserGroup8)UsrMgr.GetNextUserGroup(UserGroupPos);
Groups = Groups + mngmtGroup.Name + "\n";
}
MessageBox.Show(Groups, vault.Name + " Vault Groups", MessageBoxButtons.OK, MessageBoxIcon.Information);
} catch (System.Runtime.InteropServices.COMException ex) {
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
} catch (Exception ex) {
MessageBox.Show(ex.Message);
}
}
private void TraverseGroupMembersButton_Click(System.Object sender, System.EventArgs e)
{
try {
if (!vault.IsLoggedIn) {
//Log into selected vault as the current user
vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
UsrMgr = (IEdmUserMgr7)vault;
//Traverse group members
string Groups = "";
IEdmPos5 UserGroupPos = default(IEdmPos5);
UserGroupPos = UsrMgr.GetFirstUserGroupPosition();
while (!UserGroupPos.IsNull)
{
mngmtGroup = (IEdmUserGroup8)UsrMgr.GetNextUserGroup(UserGroupPos);
Groups = Groups + mngmtGroup.Name + " Members:" + "\n";
Groups = Groups + GetMembers(mngmtGroup);
}
MessageBox.Show(Groups, vault.Name + " Vault Group Users", MessageBoxButtons.OK, MessageBoxIcon.Information);
} catch (System.Runtime.InteropServices.COMException ex) {
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
} catch (Exception ex) {
MessageBox.Show(ex.Message);
}
}
private string GetMembers(IEdmUserGroup8 UserGroup)
{
string functionReturnValue = null;
try {
if (!vault.IsLoggedIn) {
//Log into selected vault as the current user
vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Get group members
functionReturnValue = "";
string Users = "";
IEdmPos5 UserPos = default(IEdmPos5);
UserPos = UserGroup.GetFirstUserPosition();
while (!UserPos.IsNull) {
user = (IEdmUser9)UserGroup.GetNextUser(UserPos);
Users = Users + " " + user.Name + "\n";
}
functionReturnValue = Users;
} catch (System.Runtime.InteropServices.COMException ex) {
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
} catch (Exception ex) {
MessageBox.Show(ex.Message);
}
return functionReturnValue;
}
private void AddUsersButton_Click(System.Object sender, System.EventArgs e)
{
try {
if (!vault.IsLoggedIn) {
//Log into selected vault as the current user
vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
UsrMgr = (IEdmUserMgr7)vault;
//Add users to EdmUserData2
UserData[0].mbsCompleteName = "Roger Rabbit";
UserData[0].mbsEmail = "rrabbit@animatedcharacters.com";
UserData[0].mbsInitials = "RR";
UserData[0].mbsUserName = "rrabbit";
UserData[1].mbsCompleteName = "Elmer J. Fudd";
UserData[1].mbsEmail = "efudd@animatedcharacters.com";
UserData[1].mbsInitials = "EJF";
UserData[1].mbsUserName = "efudd";
//Return user's interface in mpoUser
UserData[0].mlFlags = (int)EdmUserDataFlags.Edmudf_GetInterface;
UserData[1].mlFlags = (int)EdmUserDataFlags.Edmudf_GetInterface;
//Add these users even if other users in the array cannot be added
UserData[0].mlFlags += (int)EdmUserDataFlags.Edmudf_ForceAdd;
UserData[1].mlFlags += (int)EdmUserDataFlags.Edmudf_ForceAdd;
//Set permissions
EdmSysPerm[] perms = new EdmSysPerm[2];
perms[0] = EdmSysPerm.EdmSysPerm_EditReportQuery;
perms[1] = EdmSysPerm.EdmSysPerm_MandatoryVersionComments;
UserData[0].moSysPerms = perms;
UserData[1].moSysPerms = perms;
//Add the users to the vault
UsrMgr.AddUsers2(ref UserData);
string msg = "";
foreach (EdmUserData2 usr in UserData) {
if (usr.mhStatus == 0) {
msg += "Added user " + usr.mpoUser.Name + ". ID = " + usr.mpoUser.ID.ToString() + "." + "\n";
} else {
IEdmVault11 vault3 = (IEdmVault11)vault;
msg += "Error adding user " + usr.mbsUserName + ". " + vault3.GetErrorMessage(usr.mhStatus) + "\n";
}
}
MessageBox.Show(msg);
} catch (System.Runtime.InteropServices.COMException ex) {
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
} catch (Exception ex) {
MessageBox.Show(ex.Message);
}
}
private void RemoveUsersButton_Click(System.Object sender, System.EventArgs e)
{
try {
if (!vault.IsLoggedIn) {
//Log into selected vault as the current user
vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Remove the rrabbit from the vault
UsrMgr = (IEdmUserMgr7)vault1.CreateUtility(EdmUtility.EdmUtil_UserMgr);
user = (IEdmUser9)UsrMgr.GetUser("rrabbit");
if ((user == null)) {
MessageBox.Show("No user set to remove. Click Add users.");
return;
}
int[] users = new int[1];
users[0] = user.ID;
UsrMgr.RemoveUsers(users);
MessageBox.Show("User " + user.Name + " removed.");
//Send message to all users with permission
//to update users and groups
IEdmPos5 UserPos = default(IEdmPos5);
UserPos = UsrMgr.GetFirstUserPosition();
while (!UserPos.IsNull) {
IEdmUser9 userWithPerm = default(IEdmUser9);
userWithPerm = (IEdmUser9)UsrMgr.GetNextUser(UserPos);
if (userWithPerm.IsLoggedIn) {
if (userWithPerm.HasSysRightEx(EdmSysPerm.EdmSysPerm_EditUserMgr)) {
userWithPerm.SendMsg("ALERT: user removed", "User " + user.Name + " removed.");
}
}
}
} catch (System.Runtime.InteropServices.COMException ex) {
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
} catch (Exception ex) {
MessageBox.Show(ex.Message);
}
}
private void RemoveGroupMembersButton_Click(System.Object sender, System.EventArgs e)
{
try {
if (!vault.IsLoggedIn) {
//Log into selected vault as the current user
vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
if ((mngmtGroup == null)) {
MessageBox.Show("No group set from which to remove group member. Click Add group member.");
return;
}
//Remove user efudd from Test folder, Management group, and vault
mngmtGroup.RemoveMembers(folderMembers);
user = (IEdmUser9)UsrMgr.GetUser("efudd");
if ((user == null)) {
MessageBox.Show("No user set to remove from group. Click Add users.");
return;
}
int[] users = new int[1];
users[0] = user.ID;
UsrMgr.RemoveUsers(users);
MessageBox.Show("User " + user.Name + " removed from group and vault.");
} catch (System.Runtime.InteropServices.COMException ex) {
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
} catch (Exception ex) {
MessageBox.Show(ex.Message);
}
}
private void AddGroupMembersWithFoldersButton_Click(System.Object sender, System.EventArgs e)
{
try {
if (!vault.IsLoggedIn) {
//Log into selected vault as the current user
vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
UsrMgr = (IEdmUserMgr7)vault;
//Add efudd to Test folder
IEdmFolder6 folder = default(IEdmFolder6);
folder = (IEdmFolder6)vault.RootFolder.GetSubFolder("Test");
//Get user interface for user efudd
user = (IEdmUser9)UsrMgr.GetUser("efudd");
if ((user == null)) {
MessageBox.Show("No user set to add to group. Click Add users.");
return;
}
//Get the group interface for Management
mngmtGroup = (IEdmUserGroup8)UsrMgr.GetUserGroup("Management");
//Find out if the Management user group has
//permission to update users and groups
if (mngmtGroup.HasSysRightEx(EdmSysPerm.EdmSysPerm_EditUserMgr)) {
mngmtGroup.SendMsg("PERMISSIONS INFO", "Management group has permission to update groups and users.", false);
} else {
mngmtGroup.SendMsg("PERMISSIONS INFO", "Management group does not have permission to update groups and users.", false);
return;
}
//Add efudd as member of Management for Test folder
EdmMemberFolder[] folderMembers = new EdmMemberFolder[1];
folderMembers[0].mlFolderID = folder.ID;
folderMembers[0].mlUserID = user.ID;
mngmtGroup.AddMembersWithFolders(folderMembers);
//Verify that efudd in Management group was added to
//Test folder
object[] groups = null;
IEdmUserGroup8 groupName = null;
groups = user.GetGroupMembershipsInFolder(folder.ID);
int i = 0;
i = groups.GetUpperBound(0);
int j = 0;
groupName = (IEdmUserGroup8)groups[i];
IEdmPos5 UserGroupPos = default(IEdmPos5);
UserGroupPos = UsrMgr.GetFirstUserGroupPosition();
while (!UserGroupPos.IsNull) {
mngmtGroup = (IEdmUserGroup8)UsrMgr.GetNextUserGroup(UserGroupPos);
if ((mngmtGroup.Name == groupName.Name))
{
if (j <= i)
{
MessageBox.Show("User " + user.Name + " in the " + mngmtGroup.Name + " group was added to the " + folder.Name + " folder.");
j = j + 1;
}
}
}
} catch (System.Runtime.InteropServices.COMException ex) {
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
} catch (Exception ex) {
MessageBox.Show(ex.Message);
}
}
private void AddGroupMembersButton_Click(System.Object sender, System.EventArgs e)
{
try {
if (!vault.IsLoggedIn) {
//Log into selected vault as the current user
vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
UsrMgr = (IEdmUserMgr7)vault;
//Add efudd to Management group
mngmtGroup = (IEdmUserGroup8)UsrMgr.GetUserGroup("Management");
if ((mngmtGroup == null)) {
MessageBox.Show("Management group does not exist. Create a Management group.");
return;
}
user = (IEdmUser9)UsrMgr.GetUser("efudd");
if ((user == null)) {
MessageBox.Show("No user set to add to group. Click Add users.");
return;
}
int[] groupMbrIDs = new int[1];
groupMbrIDs[0] = user.ID;
mngmtGroup.AddMembers(groupMbrIDs);
MessageBox.Show("User " + user.Name + " added to " + mngmtGroup.Name + " group.");
} catch (System.Runtime.InteropServices.COMException ex) {
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
} catch (Exception ex) {
MessageBox.Show(ex.Message);
}
}
}
}
//Form1.Designer.cs
namespace AddRemoveUsersGroupsCSharp
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.VaultsComboBox = new System.Windows.Forms.ComboBox();
this.VaultsLabel = new System.Windows.Forms.Label();
this.TraverseUsersButton = new System.Windows.Forms.Button();
this.TraverseGroupsButton = new System.Windows.Forms.Button();
this.TraverseGroupMembersButton = new System.Windows.Forms.Button();
this.AddUsersButton = new System.Windows.Forms.Button();
this.RemoveUsersButton = new System.Windows.Forms.Button();
this.AddGroupMembersButton = new System.Windows.Forms.Button();
this.RemoveGroupMembersButton = new System.Windows.Forms.Button();
this.UserActionLabel = new System.Windows.Forms.Label();
this.GroupActionLabel = new System.Windows.Forms.Label();
this.AddGroupMembersWithFoldersButton = new System.Windows.Forms.Button();
this.SuspendLayout();
//
//VaultsComboBox
//
this.VaultsComboBox.FormattingEnabled = true;
this.VaultsComboBox.Location = new System.Drawing.Point(121, 11);
this.VaultsComboBox.Margin = new System.Windows.Forms.Padding(2);
this.VaultsComboBox.Name = "VaultsComboBox";
this.VaultsComboBox.Size = new System.Drawing.Size(176, 21);
this.VaultsComboBox.TabIndex = 10;
//
//VaultsLabel
//
this.VaultsLabel.AutoSize = true;
this.VaultsLabel.Location = new System.Drawing.Point(12, 9);
this.VaultsLabel.Margin = new System.Windows.Forms.Padding(2, 0, 2, 0);
this.VaultsLabel.Name = "VaultsLabel";
this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
this.VaultsLabel.TabIndex = 11;
this.VaultsLabel.Text = "Select vault view:";
//
//TraverseUsersButton
//
this.TraverseUsersButton.Location = new System.Drawing.Point(124, 59);
this.TraverseUsersButton.Margin = new System.Windows.Forms.Padding(2);
this.TraverseUsersButton.Name = "TraverseUsersButton";
this.TraverseUsersButton.Size = new System.Drawing.Size(173, 25);
this.TraverseUsersButton.TabIndex = 15;
this.TraverseUsersButton.Text = "Traverse users";
this.TraverseUsersButton.UseVisualStyleBackColor = true;
this.TraverseUsersButton.Click += new System.EventHandler(TraverseUsersButton_Click);
//
//TraverseGroupsButton
//
this.TraverseGroupsButton.Location = new System.Drawing.Point(121, 166);
this.TraverseGroupsButton.Margin = new System.Windows.Forms.Padding(2);
this.TraverseGroupsButton.Name = "TraverseGroupsButton";
this.TraverseGroupsButton.Size = new System.Drawing.Size(176, 25);
this.TraverseGroupsButton.TabIndex = 16;
this.TraverseGroupsButton.Text = "Traverse groups";
this.TraverseGroupsButton.UseVisualStyleBackColor = true;
this.TraverseGroupsButton.Click += new System.EventHandler(TraverseGroupsButton_Click);
//
//TraverseGroupMembersButton
//
this.TraverseGroupMembersButton.Location = new System.Drawing.Point(121, 197);
this.TraverseGroupMembersButton.Margin = new System.Windows.Forms.Padding(2);
this.TraverseGroupMembersButton.Name = "TraverseGroupMembersButton";
this.TraverseGroupMembersButton.Size = new System.Drawing.Size(176, 27);
this.TraverseGroupMembersButton.TabIndex = 17;
this.TraverseGroupMembersButton.Text = "Traverse group members";
this.TraverseGroupMembersButton.UseVisualStyleBackColor = true;
this.TraverseGroupMembersButton.Click += new System.EventHandler(TraverseGroupMembersButton_Click);
//
//AddUsersButton
//
this.AddUsersButton.Location = new System.Drawing.Point(124, 89);
this.AddUsersButton.Name = "AddUsersButton";
this.AddUsersButton.Size = new System.Drawing.Size(173, 23);
this.AddUsersButton.TabIndex = 18;
this.AddUsersButton.Text = "Add users";
this.AddUsersButton.UseVisualStyleBackColor = true;
this.AddUsersButton.Click += new System.EventHandler(AddUsersButton_Click);
//
//RemoveUsersButton
//
this.RemoveUsersButton.Location = new System.Drawing.Point(124, 118);
this.RemoveUsersButton.Name = "RemoveUsersButton";
this.RemoveUsersButton.Size = new System.Drawing.Size(173, 24);
this.RemoveUsersButton.TabIndex = 19;
this.RemoveUsersButton.Text = "Remove user";
this.RemoveUsersButton.UseVisualStyleBackColor = true;
this.RemoveUsersButton.Click += new System.EventHandler(RemoveUsersButton_Click);
//
//AddGroupMembersButton
//
this.AddGroupMembersButton.Location = new System.Drawing.Point(121, 229);
this.AddGroupMembersButton.Name = "AddGroupMembersButton";
this.AddGroupMembersButton.Size = new System.Drawing.Size(176, 23);
this.AddGroupMembersButton.TabIndex = 20;
this.AddGroupMembersButton.Text = "Add group member";
this.AddGroupMembersButton.UseVisualStyleBackColor = true;
this.AddGroupMembersButton.Click += new System.EventHandler(AddGroupMembersButton_Click);
//
//RemoveGroupMembersButton
//
this.RemoveGroupMembersButton.Location = new System.Drawing.Point(121, 287);
this.RemoveGroupMembersButton.Name = "RemoveGroupMembersButton";
this.RemoveGroupMembersButton.Size = new System.Drawing.Size(176, 25);
this.RemoveGroupMembersButton.TabIndex = 21;
this.RemoveGroupMembersButton.Text = "Remove group member and user";
this.RemoveGroupMembersButton.UseVisualStyleBackColor = true;
this.RemoveGroupMembersButton.Click += new System.EventHandler(RemoveGroupMembersButton_Click);
//
//UserActionLabel
//
this.UserActionLabel.AutoSize = true;
this.UserActionLabel.Location = new System.Drawing.Point(12, 59);
this.UserActionLabel.Name = "UserActionLabel";
this.UserActionLabel.Size = new System.Drawing.Size(69, 13);
this.UserActionLabel.TabIndex = 22;
this.UserActionLabel.Text = "User actions:";
//
//GroupActionLabel
//
this.GroupActionLabel.AutoSize = true;
this.GroupActionLabel.Location = new System.Drawing.Point(12, 166);
this.GroupActionLabel.Name = "GroupActionLabel";
this.GroupActionLabel.Size = new System.Drawing.Size(76, 13);
this.GroupActionLabel.TabIndex = 23;
this.GroupActionLabel.Text = "Group actions:";
//
//AddGroupMembersWithFoldersButton
//
this.AddGroupMembersWithFoldersButton.Location = new System.Drawing.Point(121, 258);
this.AddGroupMembersWithFoldersButton.Name = "AddGroupMembersWithFoldersButton";
this.AddGroupMembersWithFoldersButton.Size = new System.Drawing.Size(176, 23);
this.AddGroupMembersWithFoldersButton.TabIndex = 24;
this.AddGroupMembersWithFoldersButton.Text = "Add group member to folder";
this.AddGroupMembersWithFoldersButton.UseVisualStyleBackColor = true;
this.AddGroupMembersWithFoldersButton.Click += new System.EventHandler(AddGroupMembersWithFoldersButton_Click);
//
//Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6f, 13f);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(333, 329);
this.Controls.Add(this.AddGroupMembersWithFoldersButton);
this.Controls.Add(this.GroupActionLabel);
this.Controls.Add(this.UserActionLabel);
this.Controls.Add(this.RemoveGroupMembersButton);
this.Controls.Add(this.AddGroupMembersButton);
this.Controls.Add(this.RemoveUsersButton);
this.Controls.Add(this.AddUsersButton);
this.Controls.Add(this.TraverseGroupMembersButton);
this.Controls.Add(this.TraverseGroupsButton);
this.Controls.Add(this.TraverseUsersButton);
this.Controls.Add(this.VaultsComboBox);
this.Controls.Add(this.VaultsLabel);
this.Margin = new System.Windows.Forms.Padding(2);
this.Name = "Form1";
this.Load += new System.EventHandler(AddRemoveUsersGroupsCSharp_Load);
this.Text = "Add and remove users and groups";
this.ResumeLayout(false);
this.PerformLayout();
}
#endregion
internal System.Windows.Forms.ComboBox VaultsComboBox;
internal System.Windows.Forms.Label VaultsLabel;
internal System.Windows.Forms.Button TraverseUsersButton;
internal System.Windows.Forms.Button TraverseGroupsButton;
internal System.Windows.Forms.Button TraverseGroupMembersButton;
internal System.Windows.Forms.Button AddUsersButton;
internal System.Windows.Forms.Button RemoveUsersButton;
internal System.Windows.Forms.Button AddGroupMembersButton;
internal System.Windows.Forms.Button RemoveGroupMembersButton;
internal System.Windows.Forms.Label UserActionLabel;
internal System.Windows.Forms.Label GroupActionLabel;
internal System.Windows.Forms.Button AddGroupMembersWithFoldersButton;
}
}
Back to top
