Create Custom Card View Example (C#)
This example shows how to create a custom file card
view.
NOTE: If using the .NET Framework 4.0 primary interop assembly
provided with SolidWorks Enterprise PDM, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio 2010.
// a. Click File > New > Project > Visual C# > Windows
Forms Application.
// b. Type CustomCardView_CSharp in Name.
// c. Click Browse and navigate to the folder where to
create the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer
toolbar and expand
// Form1.cs in the Solution Explorer.
// f. Replace the code in Form1.cs with
this code.
// g. To create the form, replace the code in
Form1.Designer.cs with
// this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference,
click
// Assemblies > Framework in the left-side panel,
browse to the top folder of
// your SolidWorks Enterprise PDM installation, locate and
click
// EPDM.Interop.epdm.dll, click Open, and click
Add).
// 3. Add Microsoft.VisualBasic as a reference (click COM in the left-side panel,
// click Microsoft.VisualBasic, click Add, and click Close).
// 4. Right-click EPDM.Interop.epdm in References, click Properties,
and set
// Embed Interop Types to False to handle
methods that pass arrays of
// structures.
// 5.
Check out a text file from the vault.
// 6. Click Debug > Start Debugging or press F5.
//
// Postconditions:
//

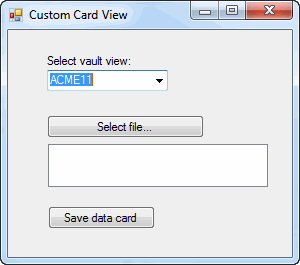

1. Displays the Custom Card View dialog box.
// 2. Select a vault view.
// 3. Click Select file.
// a. In the Select File dialog:
// 1. Click the text file checked out in
Preconditions step 5.
// 2. Click Open.
// b. In the file data card, click the Comment tab.
// c. Type something in Comments.
// 4. Click Save data card.
// 5. Click OK in the message box.
// 6. Close the Custom Card View dialog box.
// 7. Check in the file and inspect the comment in the file data card.
//----------------------------------------------------------------------------
//Form1.cs
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
using Microsoft.VisualBasic;
namespace CustomCardView_CSharp
{
public partial class Form1 : Form, IEdmCardViewCallback6
{
public Form1()
{
InitializeComponent();
}
private IEdmVault5 vault1;
IEdmCardView63 view;
IEdmFile7 aFile;
IEdmFolder5 aFolder;
public void Form1_Load(System.Object sender, System.EventArgs e)
{
try
{
vault1 = new EdmVault5();
IEdmVault10 vault = (IEdmVault10)vault1;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void SelectFile_Click(System.Object sender, System.EventArgs e)
{
try
{
File1List.Items.Clear();
if (vault1 == null)
{
vault1 = new EdmVault5();
}
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Set the initial directory in the Select File dialog
OpenFileDialog1.InitialDirectory = vault1.RootFolderPath;
//Show the Select File dialog
System.Windows.Forms.DialogResult DialogResult;
DialogResult = OpenFileDialog1.ShowDialog();
if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
{
// do nothing
}
else
{
foreach (string FileName in OpenFileDialog1.FileNames)
{
File1List.Items.Add(FileName);
aFile = (IEdmFile7)vault1.GetFileFromPath(FileName, out aFolder);
ShowCard(aFolder, aFile.ID);
}
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void SaveCard_Click(System.Object sender, System.EventArgs e)
{
try
{
if (vault1 == null)
{
vault1 = new EdmVault5();
}
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
view.SaveData();
SaveCard.Enabled = false;
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
//Display the card of the selected file
private void ShowCard(IEdmFolder5 folder, int fileID)
{
try
{
if (vault1 == null)
{
vault1 = new EdmVault5();
}
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
IEdmVault10 vault = (IEdmVault10)vault1;
EdmCardViewParams @params = default(EdmCardViewParams);
@params.mlFileID = fileID;
@params.mlFolderID = folder.ID;
@params.mlCardID = 0;
@params.mlX = 40;
@params.mlY = 300;
@params.mhParentWindow = this.Handle.ToInt32();
@params.mlEdmCardViewFlags = (int)EdmCardViewFlag.EdmCvf_Normal;
//Create the card view interface
view = vault.CreateCardViewEx2(@params, this);
if (view == null)
{
Interaction.MsgBox("The file does not have a card.");
return;
}
//Set input focus to the first control in the card
view.SetFocus(0);
//Enable all controls in the card
view.Update(EdmCardViewUpdateType.EdmCvut_EnableCtrl);
//Get the size needed to display the card
int width = 0;
int height = 0;
view.GetCardSize(out width, out height);
//Resize the form window to make room for the card
this.Width = (width + 100);
this.Height = (height + 400);
view.ShowWindow(true);
SaveCard.Enabled = false;
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
private void EdmCardViewCallback6_SetModifiedFlag()
{
SaveCard.Enabled = true;
}
void IEdmCardViewCallback6.SetModifiedFlag()
{
EdmCardViewCallback6_SetModifiedFlag();
}
private void EdmCardViewCallback6_OnAddInInput(int lFlags)
{
}
void IEdmCardViewCallback6.OnAddInInput(int lFlags)
{
EdmCardViewCallback6_OnAddInInput(lFlags);
}
private void EdmCardViewCallback6_SetCtrlData(int lCardWnd, int lCardID, int lControlID, int lVariableID, string bsVariableName, IEdmCardView5 poView, ref object poValue)
{
try
{
if (bsVariableName == "Comment")
{
Interaction.MsgBox(lCardWnd + " " + lCardID + " " + lControlID + " " + lVariableID + " " + bsVariableName + " " + poValue.ToString());
IEdmEnumeratorVariable5 enumvar = default(IEdmEnumeratorVariable5);
enumvar = aFile.GetEnumeratorVariable();
enumvar.SetVar(bsVariableName, "", poValue, true);
enumvar.Flush();
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
void IEdmCardViewCallback6.SetCtrlData(int lCardWnd, int lCardID, int lControlID, int lVariableID, string bsVariableName, IEdmCardView5 poView, ref object poValue)
{
EdmCardViewCallback6_SetCtrlData(lCardWnd, lCardID, lControlID, lVariableID, bsVariableName, poView, ref poValue);
}
private object EdmCardViewCallback6_GetCtrlData(int lCardWnd, int lCardID, int lControlID, int lVariableID, string bsVariableName, IEdmCardView5 poView)
{
//MsgBox(lCardWnd & " " & lCardID & " " & lControlID & " " & lVariableID & " " & bsVariableName & " ")
return null;
}
object IEdmCardViewCallback6.GetCtrlData(int lCardWnd, int lCardID, int lControlID, int lVariableID, string bsVariableName, IEdmCardView5 poView)
{
return EdmCardViewCallback6_GetCtrlData(lCardWnd, lCardID, lControlID, lVariableID, bsVariableName, poView);
}
private object EdmCardViewCallback6_GetDefaultValueComponent(EdmDefValComp eValue)
{
return null;
}
object IEdmCardViewCallback6.GetDefaultValueComponent(EdmDefValComp eValue)
{
return EdmCardViewCallback6_GetDefaultValueComponent(eValue);
}
}
}
