Find Revisions Using Component Example (C#)
This example shows how to find the revision numbers using
the revision number component named Alpha Revision Component.
NOTE: If using the .NET Framework 4.0 primary interop assembly
provided with SolidWorks Enterprise PDM, see
Using .NET Framework 4.0 in
Stand-alone Applications.
![](FindRevisions.gif)
//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio 2010.
// 2. Click File > New > Project > C# > Windows Forms Application.
// 3. Type FindRevisionsCSharp in Name.
// 4. Click the Browse button and browse to the folder where to create the project.
// 5. Click OK.

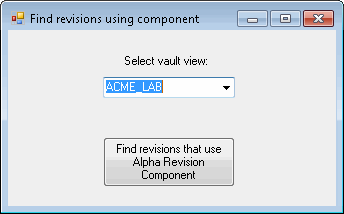

// 6. Create a form similar to the form shown above and change:
// a. Label to VaultsLabel.
// b. Combo box to VaultsComboBox.
// c. Button to FindRevisionsButton.
// 7. Replace the code in Form1.cs with this code.
// 8. Replace the code in Form1.Designer.cs with this code.
// 9. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference, click
// Framework in the left-side panel, browse to the top folder of your
// SolidWorks Enterprise PDM installation, locate and click
// EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
// 10. Right-click EPDM.Interop.epdm in References, click Properties, and set
// Embed Interop Types to False to handle methods that pass arrays of
// structures.
// 11. Open the Immediate window.
// 12. Switch back to the Form1.cs code window.
// 13. Click Debug > Start Debugging or press F5.
//
// Postconditions:
// 1. Displays a dialog.
// 2. Select a vault.
// 3. Click the Find revisions that use Alpha Revision Component button.
// 4. Prints the names of the revision numbers using the revision number
// component Alpha Revision Component to the Immediate window.
// 5. Examine the Immediate window.
// 6. Close the dialog.
//----------------------------------------------------------------------------
//Form1.cs
using EPDM.Interop.epdm;
using System;
using System.Diagnostics;
using System.Windows.Forms;
using System.Runtime.InteropServices;
namespace FindRevisionsCSharp
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
void FindRevisionsCSharp_Load(System.Object sender, System.EventArgs e)
{
try
{
//Declare and create an instance of IEdmVault5
IEdmVault5 vault1 = new EdmVault5();
//Cast IEdmVault5 to IEdmVault8
IEdmVault8 vault = (IEdmVault8)vault1;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
private void FindRevisionsButton_Click(System.Object sender, System.EventArgs e)
{
try {
//Declare and create an instance of IEdmVault5 object
//and cast to IEdmVault7
IEdmVault5 vault = new EdmVault5();
IEdmVault7 vault1 = (IEdmVault7)vault;
//Log into selected vault as the current user
vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
Debug.Print("Revision numbers that use revision number component \"Alpha Revision Component\":");
Debug.Print("");
IEdmRevisionMgr2 RevMgr = default(IEdmRevisionMgr2);
RevMgr = (IEdmRevisionMgr2)vault1.CreateUtility(EdmUtility.EdmUtil_RevisionMgr);
EdmRevNo[] RevNumbers = null;
RevMgr.GetRevisionNumbers(null, out RevNumbers);
foreach ( EdmRevNo RevNo in RevNumbers) {
EdmRevComponent2[] RevComponents = null;
RevMgr.GetRevisionNumberComponents2(-RevNo.mlRevNoID, out RevComponents);
foreach ( EdmRevComponent2 RevComponent in RevComponents) {
if (RevComponent.mbsComponentName == "Alpha Revision Component") {
Debug.Print(" " + RevNo.mbsRevNoName);
}
}
}
} catch (System.Runtime.InteropServices.COMException ex) {
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
} catch (Exception ex) {
MessageBox.Show(ex.Message);
}
}
}
}
//Form1.Designer.cs
namespace FindRevisionsCSharp
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">True if managed resources should be disposed; otherwise false</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor
/// </summary>
private void InitializeComponent()
{
this.VaultsLabel = new System.Windows.Forms.Label();
this.VaultsComboBox = new System.Windows.Forms.ComboBox();
this.FindRevisionsButton = new System.Windows.Forms.Button();
this.SuspendLayout();
//
// VaultsLabel
//
this.VaultsLabel.AutoSize = true;
this.VaultsLabel.Location = new System.Drawing.Point(112, 37);
this.VaultsLabel.Name = "VaultsLabel";
this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
this.VaultsLabel.TabIndex = 0;
this.VaultsLabel.Text = "Select vault view:";
//
// VaultsComboBox
//
this.VaultsComboBox.FormattingEnabled = true;
this.VaultsComboBox.Location = new System.Drawing.Point(94, 77);
this.VaultsComboBox.Name = "VaultsComboBox";
this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
this.VaultsComboBox.TabIndex = 1;
//
// FindRevisionsButton
//
this.FindRevisionsButton.Location = new System.Drawing.Point(94, 136);
this.FindRevisionsButton.Name = "FindRevisionsButton";
this.FindRevisionsButton.Size = new System.Drawing.Size(121, 50);
this.FindRevisionsButton.TabIndex = 2;
this.FindRevisionsButton.Text = "Find revisions that use Alpha Revision Component";
this.FindRevisionsButton.UseVisualStyleBackColor = true;
this.FindRevisionsButton.Click += new System.EventHandler(this.FindRevisionsButton_Click);
//
// Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(304, 209);
this.Controls.Add(this.FindRevisionsButton);
this.Controls.Add(this.VaultsComboBox);
this.Controls.Add(this.VaultsLabel);
this.Name = "Form1";
this.Text = "Find revisions using component";
this.Load += new System.EventHandler(this.FindRevisionsCSharp_Load);
this.ResumeLayout(false);
this.PerformLayout();
}
#endregion
private System.Windows.Forms.Label VaultsLabel;
private System.Windows.Forms.ComboBox VaultsComboBox;
private System.Windows.Forms.Button FindRevisionsButton;
}
}
