Find Users Example (C#)

This example shows how to find users in the vault.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SolidWorks Enterprise PDM, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
//  1. Start Microsoft Visual Studio 2010.
//     a. Click File > New > Project > Visual C# > Windows Forms Application.
//     b. Type FindUser_CSharp in Name.
//     c. Click Browse and navigate to the folder where to create the project.
//     d. Click OK.
//     e. Click Show All Files in the Solution Explorer toolbar and expand
//        Form1.cs in the Solution Explorer.
//     f. Replace the code in Form1.cs with this code.
//     g. To create the form, replace the code in Form1.Designer.cs with
//        this code.
//  2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//     name in the Solution Explorer, click Add Reference, click
//     Assemblies > Framework in the left-side panel, browse to the top folder of
//     your SolidWorks Enterprise PDM installation, locate and click
//     EPDM.Interop.epdm.dll, click Open, and click Add).
//  3. Add Microsoft.VisualBasic as a reference (click COM in the left-side panel,
//     click Microsoft.VisualBasic, click Add, and click Close).
//  4. Right-click EPDM.Interop.epdm in References, click Properties, and set
//     Embed Interop Types to False to handle methods that pass arrays of
//     structures.
//  5. Click Debug > Start Debugging or press F5.
//
// Postconditions:

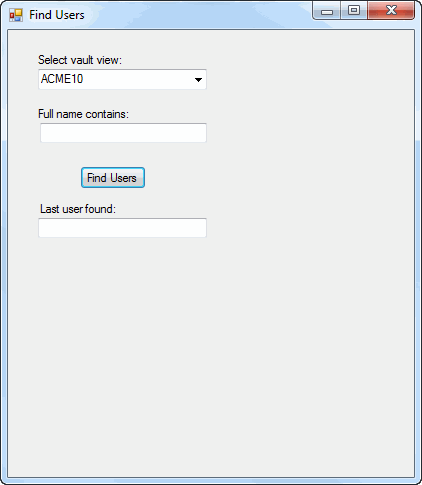

//  1. Displays the Find Users dialog box.
//     a. Select a vault view.
//     b. In Full name contains, type a substring of the full name of a
//        user that exists in the vault.
//     c. Click Find Users.
//        A message box confirms the substring typed in Postconditions
//        step 1b.
//     d. Click OK.
//        Displays a Search for users dialog.
//     e. Click Find.
//        Displays a Search for users dialog with results.
//     f. Click the first row.
//     g. Click Select.
//        * Displays a message box with the updated user information.
//        * The selected user's phone and website information are updated.
//     h. Click OK.
//  2. Updates the Find Users dialog box with the full name and picture,
//     if it exists, of the last user found whose full name contains the substring
//     typed in Postconditions step 1b.
//  3. Close the Find Users dialog box.
//----------------------------------------------------------------------------

//Form1.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
using Microsoft.VisualBasic;

namespace FindUser_CSharp
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        IEdmVault5 vault1;
        IEdmVault8 vault;
        EdmViewInfo[] Views = null;

        public void Form1_Load(System.Object sender, System.EventArgs e)
        {
            try
            {
                vault1 = new EdmVault5();
                vault = (IEdmVault8)vault1;
                vault.GetVaultViews(out Views, false);
                VaultsComboBox.Items.Clear();
                foreach (EdmViewInfo View in Views)
                {
                    VaultsComboBox.Items.Add(View.mbsVaultName);
                }
                if (VaultsComboBox.Items.Count > 0)
                {
                    VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }

        }


        private void FindUsers_Click(System.Object sender, System.EventArgs e)
{
try {
IEdmVault7 vault2 = null;
if (vault1 == null) {
vault1 = new EdmVault5();
}
vault2 = (IEdmVault7)vault1;

if (!vault1.IsLoggedIn) {
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}

//Get the user search interface
IEdmFindUser poFind = default(IEdmFindUser);
poFind = (IEdmFindUser)vault2.CreateUtility(EdmUtility.EdmUtil_FindUser);

//Search for a user with specified text in the full user name
poFind.SetPropt(EdmFindUserProp.Edmfup_FullName, this.TextBox1.Text);
string val = null;
val = (string)poFind.GetPropt(EdmFindUserProp.Edmfup_FullName);
MessageBox.Show("Find users whose full names contain " + "\"" + val + "\"");

poFind.ShowFindUI(this.Handle.ToInt32(), true, "Search for users");

IEdmEnum poResult = default(IEdmEnum);
poResult = poFind.Result;
string str = "Found " + poResult.Count.ToString() + " users with full names containing, " +
                                         "\"" + this.TextBox1.Text + "\"" + ":";

System.Drawing.Image oImg = default(System.Drawing.Image);
IEdmUser10 poUser = default(IEdmUser10);
EdmUserDataEx UserInfo = new EdmUserDataEx();

                            //Specify which user data fields are valid
                            UserInfo.mlEdmUserDataExFlags = (int)EdmUserDataExFlag.Edmudex_All;

foreach ( object foundUser in poResult) {
                                    poUser = (IEdmUser10)foundUser;

//Get user's information
poUser.GetUserDataEx(ref UserInfo);

//Update user's information
UserInfo.mbsPhone = "123456789";
                                     UserInfo.mbsWebSite1 = "http://www.solidworks.com";
                                     UserInfo.mbsWebSite2 = "https://www.facebook.com/solidworks";
                                     poUser.SetUserDataEx(ref UserInfo);
                                     str = str + Constants.vbLf + "Full name: " + UserInfo.mbsCompleteName + ", Phone: " + UserInfo.mbsPhone +
                                           ", WebSite1: " + UserInfo.mbsWebSite1 + ", Website2: " + UserInfo.mbsWebSite2;
                            }

 MessageBox.Show(str);

 //Display the picture, if available, of the last user found
 if ((UserInfo.mbsPicturePath != null)) {
                 this.TextBox2.Text = UserInfo.mbsCompleteName;
                 oImg = System.Drawing.Bitmap.FromFile(UserInfo.mbsPicturePath);
        this.CreateGraphics().DrawImage(oImg, 40, 220);
 }

} catch (System.Runtime.InteropServices.COMException ex) {
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
} catch (Exception ex) {
MessageBox.Show(ex.Message);
}

}
    }
}

Back to top

//Form1.Designer.cs
