Get Histories of Files Example (VB.NET)

This example shows how to update version comments and get histories of files.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SolidWorks Enterprise PDM, see Using .NET Framework 4.0 in Stand-alone Applications.

' Preconditions:
' 1. Start Microsoft Visual Studio 2010.
'    a. Click File > New > Project > Visual Basic > Windows Forms Application.
'    b. Type GetHistories_VBNET in Name.
'    c. Click Browse and navigate to the folder where to create the project.
'    d. Click OK
'    e. Click Show All Files in the Solution Explorer toolbar and expand
'       Form1.vb in the Solution Explorer.
'    f. Replace the code in Form1.vb with this code.
'    g. To create the form, replace the code in Form1.Designer.vb with
'       this code.

' 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
'    name in the Solution Explorer, click Add Reference, click
'    Assemblies > Framework in the left-side panel, browse to the top folder of
'    your SolidWorks Enterprise PDM installation, locate and click
'    EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
'    Embed Interop Types to False to handle methods that pass arrays of
'    structures.
' 4. Ensure that the vault contains one or more checked-in files.

' 5. Click Debug > Start Debugging or press F5.
' Postconditions:

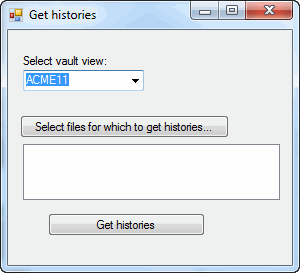

' 1. Displays the Get histories dialog box.
'    a. Select a vault view.
'    b. Click Select files for which to get histories.
'    c. In the Select File dialog:
'       1. Select one or more checked-in vault files.
'       2. Click Open.
'       3. Updates all version comments for the selected files to
'          "New comment".

'    d. Click Get histories.
'    e. Displays a message box for each history item.
'    f. Observe the updated version comments.
'    g. Click OK to close each message box.
' 2. Close the Get histories dialog box.



Imports System.IO
Imports System.Xml.Serialization
Imports System.Collections
Imports System.Collections.Generic
Imports System.Data
Imports System.Diagnostics
Imports System.Windows.Forms
Imports System.ComponentModel
Imports EPDM.Interop.epdm
Public Class Form1
    Private vault1 As IEdmVault5 = Nothing
    Dim history As IEdmHistory
    Dim historyUpdate As IEdmHistoryUpdate
    Dim aFile As IEdmFile5
    Public Sub Form1_Load(ByVal sender As System.ObjectByVal e As System.EventArgsHandles MyBase.Load
            Dim vault1 As IEdmVault5 = New EdmVault5()
            Dim vault As IEdmVault8 = DirectCast(vault1, IEdmVault8)
            Dim Views As EdmViewInfo() = Nothing
            vault.GetVaultViews(Views, False)
            For Each View As EdmViewInfo In Views
            If VaultsComboBox.Items.Count > 0 Then
                VaultsComboBox.Text = DirectCast(VaultsComboBox.Items(0), String)
            End If
        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
        End Try
    End Sub
    Public Sub SelectFiles_Click(ByVal sender As System.ObjectByVal e As System.EventArgsHandles SelectFiles.Click
            Dim vault2 As IEdmVault7 = Nothing
            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If
            vault2 = DirectCast(vault1, IEdmVault7)
            If Not vault1.IsLoggedIn Then
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If
            'Set the initial directory in the Select File dialog
            OpenFileDialog1.InitialDirectory = vault1.RootFolderPath
            'Show the Select File dialog
            Dim DialogResult As System.Windows.Forms.DialogResult = Nothing
            DialogResult = OpenFileDialog1.ShowDialog()
            If Not (DialogResult = System.Windows.Forms.DialogResult.OK) Then
            End If
            historyUpdate = vault2.CreateUtility(EdmUtility.EdmUtil_HistoryUpdate)
            For Each FileName As String In OpenFileDialog1.FileNames
                aFile = vault1.GetFileFromPath(FileName)
                ' Update all version comments for the selected files
                historyUpdate.UpdateVersionComment(aFile.ID, -1, "New comment")
        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
        End Try
    End Sub
    Public Sub GetHistories_Click(ByVal sender As System.ObjectByVal e As System.EventArgsHandles GetHistories.Click
            Dim vault2 As IEdmVault7 = Nothing
            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If
            vault2 = DirectCast(vault1, IEdmVault7)
            If Not vault1.IsLoggedIn Then
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If
           history = vault2.CreateUtility(EdmUtility.EdmUtil_History)
            For Each FileName As String In OpenFileDialog1.FileNames
                aFile = vault1.GetFileFromPath(FileName)
                ' Add each file selected to the set of files for which to get histories
            Dim ppoRethistory() As EdmHistoryItem = Nothing
            history.GetHistory(ppoRethistory, EdmHistoryType.Edmhist_FileVersion)
            Dim str As String
            For Each item As EdmHistoryItem In ppoRethistory
                str = "History of " & item.mbsItemName & vbLf
                str = str & "EdmHistoryType: " & item.meType & vbLf
                str = str & "Date: " & item.moDate & vbLf
                str = str & "Version: " & item.mlVersion & vbLf
                str = str & "User ID: " & item.mlUserID & vbLf
                str = str & "File ID: " & item.mlFileID & vbLf
                str = str & "Folder ID: " & item.mlFolderID & vbLf
                str = str & "User name: " & item.mbsUserName & vbLf
                str = str & "Comment: " & item.mbsComment & vbLf
                str = str & vbLf
        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
        End Try
    End Sub
End Class


Back to top


<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class Form1
    Inherits System.Windows.Forms.Form
    'Form overrides dispose to clean up the component list.
    <System.Diagnostics.DebuggerNonUserCode()> _
    Protected Overrides Sub Dispose(ByVal disposing As Boolean)
            If disposing AndAlso components IsNot Nothing Then
            End If
        End Try
    End Sub
    'Required by the Windows Form Designer
    Private components As System.ComponentModel.IContainer
    'NOTE: The following procedure is required by the Windows Form Designer
    'It can be modified using the Windows Form Designer.
    'Do not modify it using the code editor.
    <System.Diagnostics.DebuggerStepThrough()> _
    Private Sub InitializeComponent()
        Me.VaultsLabel = New System.Windows.Forms.Label()
        Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
        Me.SelectFiles = New System.Windows.Forms.Button()
        Me.File1List = New System.Windows.Forms.ListBox()
        Me.GetHistories = New System.Windows.Forms.Button()
        Me.OpenFileDialog1 = New System.Windows.Forms.OpenFileDialog()
        Me.VaultsLabel.AutoSize = True
        Me.VaultsLabel.Location = New System.Drawing.Point(12, 24)
        Me.VaultsLabel.Name = "VaultsLabel"
        Me.VaultsLabel.Size = New System.Drawing.Size(91, 13)
        Me.VaultsLabel.TabIndex = 0
        Me.VaultsLabel.Text = "Select vault view:"
        Me.VaultsComboBox.FormattingEnabled = True
        Me.VaultsComboBox.Location = New System.Drawing.Point(15, 40)
        Me.VaultsComboBox.Name = "VaultsComboBox"
        Me.VaultsComboBox.Size = New System.Drawing.Size(121, 21)
        Me.VaultsComboBox.TabIndex = 1
        Me.SelectFiles.Location = New System.Drawing.Point(12, 85)
        Me.SelectFiles.Name = "SelectFiles"
        Me.SelectFiles.Size = New System.Drawing.Size(209, 23)
        Me.SelectFiles.TabIndex = 2
        Me.SelectFiles.Text = "Select files for which to get histories..."
        Me.SelectFiles.UseVisualStyleBackColor = True
        Me.File1List.FormattingEnabled = True
        Me.File1List.HorizontalScrollbar = True
        Me.File1List.Location = New System.Drawing.Point(15, 114)
        Me.File1List.Name = "File1List"
        Me.File1List.SelectionMode = System.Windows.Forms.SelectionMode.MultiExtended
        Me.File1List.Size = New System.Drawing.Size(257, 56)
        Me.File1List.TabIndex = 4
        Me.GetHistories.Location = New System.Drawing.Point(40, 183)
        Me.GetHistories.Name = "GetHistories"
        Me.GetHistories.Size = New System.Drawing.Size(157, 23)
        Me.GetHistories.TabIndex = 6
        Me.GetHistories.Text = "Get histories"
        Me.GetHistories.UseVisualStyleBackColor = True
        Me.OpenFileDialog1.FileName = "OpenFileDialog1"
        Me.OpenFileDialog1.Multiselect = True
        Me.OpenFileDialog1.Title = "Select File"
        Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
        Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
        Me.ClientSize = New System.Drawing.Size(284, 229)
        Me.Name = "Form1"
        Me.Text = "Get histories"
    End Sub
    Friend WithEvents VaultsLabel As System.Windows.Forms.Label
    Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
    Friend WithEvents SelectFiles As System.Windows.Forms.Button
    Friend WithEvents File1List As System.Windows.Forms.ListBox
    Friend WithEvents GetHistories As System.Windows.Forms.Button
    Friend WithEvents OpenFileDialog1 As System.Windows.Forms.OpenFileDialog
End Class

Back to top
