Get and Set Folder Permissions Example (C#)

This example shows how to create an application that displays a form in which a user can assign permissions to folders for users and groups in a vault.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SolidWorks Enterprise PDM, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
//  1. Start Microsoft Visual Studio 2010.
//  2. Click File > New > Project > Visual Basic > Windows Forms Application.
//  3. Type CallingCSharp in Name.
//  4. Click Browse and navigate to the folder where to create the project.
//  5. Click OK.

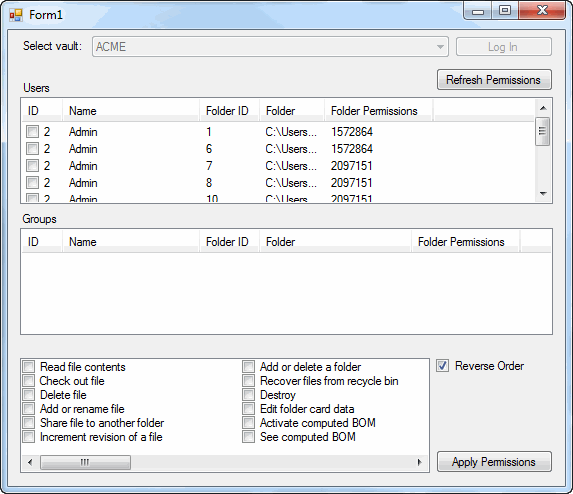

//  6. Create a form similar to the form shown above with the following names for the form controls:
//     a. Label1 (label control with text, "Select vault:")
//     b. comboVault (combo box control)
//     c. buttonLogIn (button with text, "Log In")
//     d. Label2 (label with text, "Users")
//     e. buttonRefresh (button with text, "Refresh Permissions")
//     f. listViewUsers (list view control)
//        ColumnHeader1 (ID)
//        ColumnHeader2 (Name)
//        ColumnHeader3 (Folder ID)
//        ColumnHeader7 (Folder)
//        ColumnHeader8 (Folder Permissions)
//     g. Label3 (label with text, "Groups")
//     h. listViewGroups (list view control)
//        ColumnHeader4 (ID)
//        ColumnHeader5 (Name)
//        ColumnHeader6 (Folder ID)
//        ColumnHeader9 (Folder)
//        ColumnHeader10 (Folder Permissions)
//     i. listViewPermissions (list view control)
//     j. checkboxReverseOrder (check box with text, "Reverse Order")
//     k. buttonApply (button with text, "Apply Permissions")
//  7. Replace the code in Form1.cs with this code.
//  8. Replace the code in Form1.Designer.cs with this code.
//  9. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//     name in the Solution Explorer, click Add Reference, click Assemblies > Framework in the
//     left-side panel, browse to the top folder of your SolidWorks Enterprise PDM installation,
//     locate and click EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
// 10. Right-click References > EPDM.Interop.epdm, click Properties, and set
//     Embed Interop Types to False to handle methods
//     that pass arrays of structures.
// 11. Click Debug > Start Debugging or press F5.
//
// Postconditions:
// 1. In the Form1 dialog, select a vault and click Log In.
//    Wait for the application to populate the Users and Groups list boxes.
// 2. Click permissions in the list box located left of the Reverse Order check box.
// 3. Optionally select the Reverse Order check box.
// 4. Select the check boxes in front of the users and folders to which to assign permissions.
// 5. Click Apply Permissions.
//    Wait for the application to populate the Users list.
//    The folder permissions are updated for the selected users.
// 6. Select the check boxes in front of the groups and folders to which to assign permissions.
// 7. Click Apply Permissions.
//    Wait for the application to populate the Groups list.
//    The folder permissions are updated for the selected groups.
//----------------------------------------------------------------------------

// Form1.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;

namespace CallingCSharp
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        IEdmVault5 vault1;
        IEdmVault8 vault;
        private Dictionary<int, string> folders;
        String val;
        private enum MyEdmRightsFlags : int
        {
            MyRight_All = EdmRightFlags.EdmRight_All,
            MyRight_None = EdmRightFlags.EdmRight_None,
            MyRight_Read = EdmRightFlags.EdmRight_Read,
            MyRight_Lock = EdmRightFlags.EdmRight_Lock,
            MyRight_Delete = EdmRightFlags.EdmRight_Delete,
            MyRight_AddRename = EdmRightFlags.EdmRight_Add,
            MyRight_Share = EdmRightFlags.EdmRight_Share,
            MyRight_IncrementRevision = EdmRightFlags.EdmRight_IncrementRevision,
            MyRight_AddDeleteFolder = EdmRightFlags.EdmRight_AddFolder,
            MyRight_RecoverTrash = EdmRightFlags.EdmRight_RecoverTrash,
            MyRight_DestroyTrash = EdmRightFlags.EdmRight_DestroyTrash,
            MyRight_EditFolderCard = EdmRightFlags.EdmRight_EditFolderCard,
            MyRight_BomActivate = EdmRightFlags.EdmRight_BomActivate,
            MyRight_MaySeeComputedBOM = EdmRightFlags.EdmRight_MaySeeComputedBOM,
            MyRight_AssignGroupMembership = 0x1000,
            MyRightAssignFilePermissions = 0x2000,
            MyRight_PermitGroupAccess = 0x4000,
            MyRight_ReadNamedBOM = 0x8000,
            MyRight_ChangeCard = EdmRightFlags.EdmRight_ChangeCard,
            MyRight_ShowWorkingVersion = EdmRightFlags.EdmRight_ShowWorkingVersion,
            MyRight_Rollback = EdmRightFlags.EdmRight_Rollback,
            MyRight_ColdStoreRestore = EdmRightFlags.EdmRight_ColdStoreRestore,
            MyRight_EditVerFreeVarData = EdmRightFlags.EdmRight_EditVerFreeVarData
        }

        private void Form1_Load(System.Object sender, System.EventArgs e)
        {
            try
            {
                vault1 = new EdmVault5();
                vault = (IEdmVault8)vault1;
                EdmViewInfo[] aViews = null;
                vault.GetVaultViews(out aViews, false);
                comboVault.Items.Clear();
                if (aViews != null)
                {
                    foreach (EdmViewInfo View in aViews)
                    {
                        comboVault.Items.Add(View.mbsVaultName);
                    }
                    comboVault.SelectedIndex = 0;
                }

                Dictionary<MyEdmRightsFlags, String> RightLabels = new Dictionary<MyEdmRightsFlags, String>()
            {{MyEdmRightsFlags.MyRight_Read, "Read file contents"}, {MyEdmRightsFlags.MyRight_Lock, "Check out file"}, {MyEdmRightsFlags.MyRight_Delete, "Delete file"}, {MyEdmRightsFlags.MyRight_AddRename, "Add or rename file"},{MyEdmRightsFlags.MyRight_Share, "Share file to another folder"}, {MyEdmRightsFlags.MyRight_IncrementRevision, "Increment revision of a file"}, {MyEdmRightsFlags.MyRight_AddDeleteFolder, "Add or delete a folder"}, {MyEdmRightsFlags.MyRight_RecoverTrash, "Recover files from recycle bin"}, {MyEdmRightsFlags.MyRight_DestroyTrash, "Destroy"}, {MyEdmRightsFlags.MyRight_EditFolderCard, "Edit folder card data"}, {MyEdmRightsFlags.MyRight_BomActivate, "Activate computed BOM"}, {MyEdmRightsFlags.MyRight_MaySeeComputedBOM, "See computed BOM"}, {MyEdmRightsFlags.MyRight_AssignGroupMembership, "Assign group membership"}, {MyEdmRightsFlags.MyRightAssignFilePermissions, "Assign File permissions"}, {MyEdmRightsFlags.MyRight_PermitGroupAccess, "Permit or deny group-level access to files"}, {MyEdmRightsFlags.MyRight_ReadNamedBOM, "Read named bill of materials"}, {MyEdmRightsFlags.MyRight_ChangeCard, "Can update the design of cards"}, {MyEdmRightsFlags.MyRight_ShowWorkingVersion, "Show working versions of files"}, {MyEdmRightsFlags.MyRight_Rollback, "Rollback"},{MyEdmRightsFlags.MyRight_ColdStoreRestore, "Restore file from cold storage"}, {MyEdmRightsFlags.MyRight_EditVerFreeVarData, "Edit version free variable data"}};

                foreach (MyEdmRightsFlags flag in Enum.GetValues(typeof(MyEdmRightsFlags)))
                {
                    if (RightLabels.ContainsKey(flag))
                    {
                        String val;
                        RightLabels.TryGetValue(flag, out val);
                        ListViewItem rightItem = listViewPermissions.Items.Add(val);
                        rightItem.Tag = flag;
                    }
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void buttonLogIn_Click(object sender, System.EventArgs e)
        {
            try {
            vault.LoginAuto(comboVault.Text, (int)this.Handle);
            comboVault.Enabled = false;
            buttonLogIn.Enabled = false;
            buttonApply.Enabled = true;
            buttonRefresh.Enabled = true;

            folders = new Dictionary<int, string>();

            IEdmFolder7 rootFolder = (IEdmFolder7)vault.RootFolder;
            BuildFolderDictionary(rootFolder);

            ShowAllUserPermissions();
            ShowAllGroupPermissions();
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void BuildFolderDictionary(IEdmFolder7 folder)
        {
            folders.Add(folder.ID, folder.LocalPath);

            IEdmPos5 posSubFolder = folder.GetFirstSubFolderPosition();
            while (!(posSubFolder.IsNull))
            {
                IEdmFolder7 subFolder = (IEdmFolder7)folder.GetNextSubFolder(posSubFolder);
                BuildFolderDictionary(subFolder);
            }
        }

        private void ShowAllUserPermissions()
        {
            listViewUsers.Items.Clear();
            IEdmUserMgr7 userMgr = (IEdmUserMgr7)vault;
            IEdmPos5 userPos = userMgr.GetFirstUserPosition();
            while (!(userPos.IsNull))
            {
                IEdmUser5 user = (IEdmUser5)userMgr.GetNextUser(userPos);

                foreach (int folderID in folders.Keys)
                {
                    EdmFolderPermission[] aPermissions = null;
                    userMgr.GetFolderPermissions(user.ID, user.ObjectType, folderID, (int)EdmGetPermFlag.EdmGetPerm_OnlyExplicitlySet, out aPermissions);

                    if (aPermissions != null && aPermissions.Length > 0)
                    {
                        ListViewItem itemUser = listViewUsers.Items.Add(user.ID.ToString());
                        itemUser.SubItems.Add(user.Name);
                        itemUser.SubItems.Add(folderID.ToString());
                        folders.TryGetValue(folderID, out val);
                        itemUser.SubItems.Add(val);
                        EdmFolderPermission folderPermission = (EdmFolderPermission)aPermissions.GetValue(0);
                        itemUser.SubItems.Add(folderPermission.mlEdmRightFlag.ToString());
                    }
                }
            }
        }

        private void ShowAllGroupPermissions()
        {
            listViewGroups.Items.Clear();
            IEdmUserMgr7 userMgr = (IEdmUserMgr7)vault;
            IEdmPos5 groupPos = userMgr.GetFirstUserGroupPosition();
            while (!(groupPos.IsNull))
            {
                IEdmUserGroup5 @group = (IEdmUserGroup5)userMgr.GetNextUserGroup(groupPos);

                foreach (int folderID in folders.Keys)
                {
                    EdmFolderPermission[] aPermissions = null;
                    userMgr.GetFolderPermissions(@group.ID, @group.ObjectType, folderID, 0, out aPermissions);

                    if (aPermissions != null && aPermissions.Length > 0)
                    {
                        ListViewItem itemGroup = listViewGroups.Items.Add(@group.ID.ToString());
                        itemGroup.SubItems.Add(@group.Name);
                        itemGroup.SubItems.Add(folderID.ToString());
                        folders.TryGetValue(folderID, out val);
                        itemGroup.SubItems.Add(val);
                        EdmFolderPermission folderPermission = (EdmFolderPermission)aPermissions.GetValue(0);
                        itemGroup.SubItems.Add(folderPermission.mlEdmRightFlag.ToString());
                    }
                }
            }
        }

        private void buttonApply_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                int assignedRights = 0;
                foreach (ListViewItem rightItem in listViewPermissions.Items)
                {
                    if (rightItem.Checked)
                    {
                        assignedRights = assignedRights | (int)rightItem.Tag;
                    }
                }

                IEdmUserMgr7 userMgr = (IEdmUserMgr7)vault;

                List<EdmFolderPermission> listPermissions = new List<EdmFolderPermission>();
                foreach (ListViewItem itemUser in listViewUsers.Items)
                {
                    if (itemUser.Checked)
                    {
                        int folderID = Convert.ToInt32(itemUser.SubItems[2].Text);
                        EdmFolderPermission permission = default(EdmFolderPermission);
                        {
                            permission.mlFolderID = folderID;
                            permission.mlOwnerID = Convert.ToInt32(itemUser.SubItems[0].Text);
                            permission.meOwnerType = EdmObjectType.EdmObject_User;
                            permission.mlEdmRightFlag = assignedRights;
                        }
                        listPermissions.Add(permission);
                    }
                }

                foreach (ListViewItem itemGroup in listViewGroups.Items)
                {
                    if (itemGroup.Checked)
                    {
                        int folderID = Convert.ToInt32(itemGroup.SubItems[2].Text);
                        EdmFolderPermission permission = default(EdmFolderPermission);
                        {
                            permission.mlFolderID = folderID;
                            permission.mlOwnerID = Convert.ToInt32(itemGroup.SubItems[0].Text);
                            permission.meOwnerType = EdmObjectType.EdmObject_UserGroup;
                            permission.mlEdmRightFlag = assignedRights;
                        }
                        listPermissions.Add(permission);
                    }
                }

                if (checkboxReverseOrder.Checked)
                    listPermissions.Reverse();

                EdmFolderPermission[] permissions = listPermissions.ToArray();
                userMgr.SetFolderPermissions(permissions);

                ShowAllGroupPermissions();
                ShowAllUserPermissions();
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void buttonRefresh_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                ShowAllGroupPermissions();
                ShowAllUserPermissions();
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }


    }

}

// Form1.Designer.cs

namespace CallingCSharp
{
    partial class Form1
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.buttonLogIn = new System.Windows.Forms.Button();
            this.label2 = new System.Windows.Forms.Label();
            this.buttonRefresh = new System.Windows.Forms.Button();
            this.label3 = new System.Windows.Forms.Label();
            this.checkboxReverseOrder = new System.Windows.Forms.CheckBox();
            this.buttonApply = new System.Windows.Forms.Button();
            this.listViewUsers = new System.Windows.Forms.ListView();
            this.columnHeader1 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.columnHeader2 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.columnHeader3 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.columnHeader7 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.columnHeader8 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.listViewGroups = new System.Windows.Forms.ListView();
            this.columnHeader4 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.columnHeader5 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.columnHeader6 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.columnHeader9 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.columnHeader10 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.listViewPermissions = new System.Windows.Forms.ListView();
            this.comboVault = new System.Windows.Forms.ComboBox();
            this.label4 = new System.Windows.Forms.Label();
            this.SuspendLayout();
            //
            // buttonLogIn
            //
            this.buttonLogIn.Location = new System.Drawing.Point(518, 27);
            this.buttonLogIn.Name = "buttonLogIn";
            this.buttonLogIn.Size = new System.Drawing.Size(75, 23);
            this.buttonLogIn.TabIndex = 2;
            this.buttonLogIn.Text = "Log In";
            this.buttonLogIn.UseVisualStyleBackColor = true;
            this.buttonLogIn.Click += new System.EventHandler(this.buttonLogIn_Click);
            //
            // label2
            //
            this.label2.AutoSize = true;
            this.label2.Location = new System.Drawing.Point(38, 85);
            this.label2.Name = "label2";
            this.label2.Size = new System.Drawing.Size(37, 13);
            this.label2.TabIndex = 3;
            this.label2.Text = "Users";
            //
            // buttonRefresh
            //
            this.buttonRefresh.Location = new System.Drawing.Point(518, 75);
            this.buttonRefresh.Name = "buttonRefresh";
            this.buttonRefresh.Size = new System.Drawing.Size(126, 23);
            this.buttonRefresh.TabIndex = 4;
            this.buttonRefresh.Text = "Refresh Permissions";
            this.buttonRefresh.UseVisualStyleBackColor = true;
            this.buttonRefresh.Click += new System.EventHandler(this.buttonRefresh_Click);
            //
            // label3
            //
            this.label3.AutoSize = true;
            this.label3.Location = new System.Drawing.Point(38, 227);
            this.label3.Name = "label3";
            this.label3.Size = new System.Drawing.Size(44, 13);
            this.label3.TabIndex = 6;
            this.label3.Text = "Groups";
            //
            // checkboxReverseOrder
            //
            this.checkboxReverseOrder.AutoSize = true;
            this.checkboxReverseOrder.Location = new System.Drawing.Point(518, 368);
            this.checkboxReverseOrder.Name = "checkboxReverseOrder";
            this.checkboxReverseOrder.Size = new System.Drawing.Size(95, 17);
            this.checkboxReverseOrder.TabIndex = 9;
            this.checkboxReverseOrder.Text = "Reverse Order";
            this.checkboxReverseOrder.UseVisualStyleBackColor = true;
            //
            // buttonApply
            //
            this.buttonApply.Location = new System.Drawing.Point(518, 407);
            this.buttonApply.Name = "buttonApply";
            this.buttonApply.Size = new System.Drawing.Size(126, 23);
            this.buttonApply.TabIndex = 10;
            this.buttonApply.Text = "Apply Permissions";
            this.buttonApply.UseVisualStyleBackColor = true;
            this.buttonApply.Click += new System.EventHandler(buttonApply_Click);
            //
            // listViewUsers
            //
            this.listViewUsers.CheckBoxes = true;
            this.listViewUsers.Columns.AddRange(new System.Windows.Forms.ColumnHeader[] {
            this.columnHeader1,
            this.columnHeader2,
            this.columnHeader3,
            this.columnHeader7,
            this.columnHeader8});
            this.listViewUsers.Location = new System.Drawing.Point(38, 112);
            this.listViewUsers.Name = "listViewUsers";
            this.listViewUsers.Size = new System.Drawing.Size(501, 97);
            this.listViewUsers.TabIndex = 11;
            this.listViewUsers.UseCompatibleStateImageBehavior = false;
            this.listViewUsers.View = System.Windows.Forms.View.Details;
            //
            // columnHeader1
            //
            this.columnHeader1.Text = "ID";
            this.columnHeader1.Width = 41;
            //
            // columnHeader2
            //
            this.columnHeader2.Text = "Name";
            this.columnHeader2.Width = 137;
            //
            // columnHeader3
            //
            this.columnHeader3.Text = "Folder ID";
            //
            // columnHeader7
            //
            this.columnHeader7.Text = "Folder";
            this.columnHeader7.Width = 152;
            //
            // columnHeader8
            //
            this.columnHeader8.Text = "Folder Permissions";
            this.columnHeader8.Width = 108;
            //
            // listViewGroups
            //
            this.listViewGroups.CheckBoxes = true;
            this.listViewGroups.Columns.AddRange(new System.Windows.Forms.ColumnHeader[] {
            this.columnHeader4,
            this.columnHeader5,
            this.columnHeader6,
            this.columnHeader9,
            this.columnHeader10});
            this.listViewGroups.Location = new System.Drawing.Point(38, 257);
            this.listViewGroups.Name = "listViewGroups";
            this.listViewGroups.Size = new System.Drawing.Size(501, 97);
            this.listViewGroups.TabIndex = 12;
            this.listViewGroups.UseCompatibleStateImageBehavior = false;
            this.listViewGroups.View = System.Windows.Forms.View.Details;
            //
            // columnHeader4
            //
            this.columnHeader4.Text = "ID";
            this.columnHeader4.Width = 41;
            //
            // columnHeader5
            //
            this.columnHeader5.Text = "Name";
            this.columnHeader5.Width = 137;
            //
            // columnHeader6
            //
            this.columnHeader6.Text = "Folder ID";
            //
            // columnHeader9
            //
            this.columnHeader9.Text = "Folder";
            this.columnHeader9.Width = 152;
            //
            // columnHeader10
            //
            this.columnHeader10.Text = "Folder Permissions";
            this.columnHeader10.Width = 108;
            //
            // listViewPermissions
            //
            this.listViewPermissions.CheckBoxes = true;
            this.listViewPermissions.Location = new System.Drawing.Point(38, 383);
            this.listViewPermissions.Name = "listViewPermissions";
            this.listViewPermissions.Size = new System.Drawing.Size(431, 97);
            this.listViewPermissions.TabIndex = 13;
            this.listViewPermissions.UseCompatibleStateImageBehavior = false;
            this.listViewPermissions.View = System.Windows.Forms.View.List;
            //
            // comboVault
            //
            this.comboVault.FormattingEnabled = true;
            this.comboVault.Location = new System.Drawing.Point(108, 27);
            this.comboVault.Name = "comboVault";
            this.comboVault.Size = new System.Drawing.Size(361, 21);
            this.comboVault.TabIndex = 14;
            //
            // label4
            //
            this.label4.AutoSize = true;
            this.label4.Location = new System.Drawing.Point(38, 27);
            this.label4.Name = "label4";
            this.label4.Size = new System.Drawing.Size(66, 13);
            this.label4.TabIndex = 15;
            this.label4.Text = "Select vault:";
            //
            // Form1
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(749, 516);
            this.Controls.Add(this.label4);
            this.Controls.Add(this.comboVault);
            this.Controls.Add(this.listViewPermissions);
            this.Controls.Add(this.listViewGroups);
            this.Controls.Add(this.listViewUsers);
            this.Controls.Add(this.buttonApply);
            this.Controls.Add(this.checkboxReverseOrder);
            this.Controls.Add(this.label3);
            this.Controls.Add(this.buttonRefresh);
            this.Controls.Add(this.label2);
            this.Controls.Add(this.buttonLogIn);
            this.Name = "Form1";
            this.Text = "Folder Permissions";
            this.Load += new System.EventHandler(this.Form1_Load);
            this.ResumeLayout(false);
            this.PerformLayout();

        }

        #endregion

        private System.Windows.Forms.Label label1;
        private System.Windows.Forms.Button buttonLogIn;
        private System.Windows.Forms.Label label2;
        private System.Windows.Forms.Button buttonRefresh;
        private System.Windows.Forms.Label label3;
        private System.Windows.Forms.CheckBox checkboxReverseOrder;
        private System.Windows.Forms.Button buttonApply;
        private System.Windows.Forms.ListView listViewUsers;
        private System.Windows.Forms.ListView listViewGroups;
        private System.Windows.Forms.ListView listViewPermissions;
        private System.Windows.Forms.ComboBox comboVault;
        public System.Windows.Forms.ColumnHeader columnHeader1;
        public System.Windows.Forms.ColumnHeader columnHeader2;
        public System.Windows.Forms.ColumnHeader columnHeader3;
        public System.Windows.Forms.ColumnHeader columnHeader7;
        public System.Windows.Forms.ColumnHeader columnHeader8;
        public System.Windows.Forms.ColumnHeader columnHeader4;
        public System.Windows.Forms.ColumnHeader columnHeader5;
        public System.Windows.Forms.ColumnHeader columnHeader6;
        public System.Windows.Forms.ColumnHeader columnHeader9;
        public System.Windows.Forms.ColumnHeader columnHeader10;
        private System.Windows.Forms.Label label4;
    }
}
