Set Part Numbers Using Default Serial Numbers Example (C#)
This example shows how to set part numbers using default serial numbers.
NOTE: If using the .NET Framework 4.0 primary interop assembly
provided with SolidWorks Enterprise PDM, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio 2010.
// a. Click File > New > Project > Visual C# > Windows Forms Application.
// b. Type SerialNumbersCSharp in Name.
// c. Click Browse and navigate to the folder where to create the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer toolbar and expand
// Form1.cs in the Solution Explorer.
// f. Replace the code in Form1.cs with this code.
// g. To create the form, replace the code in Form1.Designer.cs with
// this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference, click
// Assemblies > Framework in the left-side panel, browse to the top folder of
// your SolidWorks Enterprise PDM installation, locate and click
// EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
// 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
// Embed Interop Types to False to handle methods that pass arrays of
// structures.
// 4. Ensure that you have:
// * a vault with at least one serial number generator.
// * a checked-out file in that vault with its Part Number variable's
// default set to a serial number.
// 5. Click Debug > Start Debugging or press F5.
//
// Postconditions:

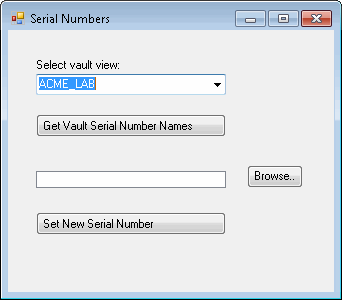

// 1. Displays the Serial Numbers dialog box.
// 2. Select a vault view.
// 3. Click Get Vault Serial Number Names.
// 4. Displays a message box containing the names of the serial number
// generators for the selected vault.
// 5. Click OK to close the message box.
// 6. Click Browse.
// a. Click a checked-out file in the selected vault whose
// data card has a Part Number variable.
// b. Click Open.
// The selected file's path and file name appear in the Serial
// Numbers dialog box.
// 7. Click Set New Serial Number.
// 8. Displays a message box verifying that the Part Number was
// set and shows the value of that Part Number.
// NOTES:
// * The value set for the Part Number is the next number in the first
// serial number generator shown in the message box displayed in
// step 3.
// * Make note of the Part Number.
// 9. Click OK to close the message box.
// 10. Check in the file whose Part Number was set in step 7, then check out the
// file.
// 11. Examine the Part Number on the data card of the checked-out file.
// 12. Close the Serial Numbers dialog box.
//----------------------------------------------------------------------------
//Form1.cs
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
namespace SerialNumbersCSharp
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
private IEdmVault5 vault1 = null;
string aSerialNbrName;
string aFileName;
IEdmFile5 aFile;
string aFolder;
IEdmSerNoGen7 serialNbrs;
private void Form1_Load(System.Object sender, System.EventArgs e)
{
try {
vault1 = new EdmVault5();
IEdmVault8 vault = (IEdmVault8)vault1;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views) {
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0) {
VaultsComboBox.Text = (string) VaultsComboBox.Items[0];
}
} catch (System.Runtime.InteropServices.COMException ex) {
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
} catch (Exception ex) {
MessageBox.Show(ex.Message);
}
}
public void Button1_Click(System.Object sender, System.EventArgs e)
{
try {
//Only create a new vault object
//if one hasn't been created yet
IEdmVault11 vault2 = null;
if (vault1 == null) {
vault1 = new EdmVault5();
}
vault2 = (IEdmVault11)vault1;
if (!vault1.IsLoggedIn) {
//Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
serialNbrs = (IEdmSerNoGen7)vault2.CreateUtility(EdmUtility.EdmUtil_SerNoGen);
string[] names = { };
serialNbrs.GetSerialNumberNames(out names);
string myMessage = "";
myMessage = "Serial number names in selected vault: " + "\n ";
int idx = 0;
idx = (names.GetLowerBound(0));
while (idx <= (names.GetUpperBound(0))) {
myMessage = myMessage + names[idx] + "\n";
idx = idx + 1;
}
// Use this serial number generator
aSerialNbrName = names[0];
MessageBox.Show(myMessage);
} catch (System.Runtime.InteropServices.COMException ex) {
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
} catch (Exception ex) {
MessageBox.Show(ex.Message);
}
}
public void BrowseButton_Click(System.Object sender, System.EventArgs e)
{
try {
//Set the initial directory in the Select a file dialog
OpenFileDialog1.InitialDirectory = vault1.RootFolderPath;
//Show the Select a file dialog
System.Windows.Forms.DialogResult DialogResult;
DialogResult = OpenFileDialog1.ShowDialog();
if (!(DialogResult == System.Windows.Forms.DialogResult.OK)) {
// Do nothing
} else {
// Browse for a file whose serial number to set
// File's data card must have a Part Number associated
// with a serial number generator and must be checked out
string fileName = OpenFileDialog1.FileName;
FileListBox.Items.Add(fileName);
IEdmFolder5 retFolder = default(IEdmFolder5);
aFile = vault1.GetFileFromPath(fileName, out retFolder);
}
} catch (System.Runtime.InteropServices.COMException ex) {
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
} catch (Exception ex) {
MessageBox.Show(ex.Message);
}
}
public void NewButton_Click(System.Object sender, System.EventArgs e)
{
try {
IEdmSerNoValue serialNbrValue = default(IEdmSerNoValue);
serialNbrValue = serialNbrs.AllocSerNoValue(aSerialNbrName, this.Handle.ToInt32(), " ", 0, 0, 0, 0);
dynamic serialNbrValueValue = serialNbrValue.Value;
IEdmEnumeratorVariable5 enumVariable = default(IEdmEnumeratorVariable5);
enumVariable = aFile.GetEnumeratorVariable(aFileName);
// Set the Part Number of the selected file
enumVariable.SetVar("Part Number", "@", serialNbrValueValue);
IEdmEnumeratorVariable8 enumVariable8 = (IEdmEnumeratorVariable8)enumVariable;
enumVariable8.CloseFile(true);
MessageBox.Show("Part Number set to " + serialNbrValueValue.ToString() + "." + " ");
} catch (System.Runtime.InteropServices.COMException ex) {
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
} catch (Exception ex) {
MessageBox.Show(ex.Message);
}
}
}
}
using Microsoft.VisualBasic;
using System;
using System.Collections;
using System.Collections.Generic;
using System.Data;
using System.Diagnostics;
namespace SerialNumbersCSharp
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.VaultsLabel = new System.Windows.Forms.Label();
this.VaultsComboBox = new System.Windows.Forms.ComboBox();
this.Button1 = new System.Windows.Forms.Button();
this.FileListBox = new System.Windows.Forms.ListBox();
this.OpenFileDialog1 = new System.Windows.Forms.OpenFileDialog();
this.BrowseButton = new System.Windows.Forms.Button();
this.NewButton = new System.Windows.Forms.Button();
this.SuspendLayout();
//
//VaultsLabel
//
this.VaultsLabel.AutoSize = true;
this.VaultsLabel.ImageAlign = System.Drawing.ContentAlignment.MiddleLeft;
this.VaultsLabel.Location = new System.Drawing.Point(25, 28);
this.VaultsLabel.Name = "VaultsLabel";
this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
this.VaultsLabel.TabIndex = 0;
this.VaultsLabel.Text = "Select vault view:";
//
//VaultsComboBox
//
this.VaultsComboBox.FormattingEnabled = true;
this.VaultsComboBox.Location = new System.Drawing.Point(28, 44);
this.VaultsComboBox.Name = "VaultsComboBox";
this.VaultsComboBox.Size = new System.Drawing.Size(190, 21);
this.VaultsComboBox.TabIndex = 1;
//
//Button1
//
this.Button1.ImageAlign = System.Drawing.ContentAlignment.MiddleLeft;
this.Button1.Location = new System.Drawing.Point(28, 84);
this.Button1.Name = "Button1";
this.Button1.Size = new System.Drawing.Size(190, 23);
this.Button1.TabIndex = 2;
this.Button1.Text = "Get Vault Serial Number Names";
this.Button1.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
this.Button1.UseVisualStyleBackColor = true;
this.Button1.Click += new System.EventHandler(this.Button1_Click);
//
//FileListBox
//
this.FileListBox.FormattingEnabled = true;
this.FileListBox.Location = new System.Drawing.Point(28, 141);
this.FileListBox.Name = "FileListBox";
this.FileListBox.Size = new System.Drawing.Size(190, 17);
this.FileListBox.TabIndex = 3;
//
//OpenFileDialog1
//
this.OpenFileDialog1.FileName = "OpenFileDialog1";
this.OpenFileDialog1.Multiselect = true;
this.OpenFileDialog1.Title = "Select a file";
//
//BrowseButton
//
this.BrowseButton.Location = new System.Drawing.Point(239, 135);
this.BrowseButton.Name = "BrowseButton";
this.BrowseButton.Size = new System.Drawing.Size(56, 23);
this.BrowseButton.TabIndex = 4;
this.BrowseButton.Text = "Browse...";
this.BrowseButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
this.BrowseButton.UseVisualStyleBackColor = true;
this.BrowseButton.Click += new System.EventHandler(this.BrowseButton_Click);
//
//NewButton
//
this.NewButton.Location = new System.Drawing.Point(28, 182);
this.NewButton.Name = "NewButton";
this.NewButton.Size = new System.Drawing.Size(190, 23);
this.NewButton.TabIndex = 5;
this.NewButton.Text = "Set New Serial Number";
this.NewButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
this.NewButton.UseVisualStyleBackColor = true;
this.NewButton.Click += new System.EventHandler(this.NewButton_Click);
//
//Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6f, 13f);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(326, 262);
this.Controls.Add(this.NewButton);
this.Controls.Add(this.BrowseButton);
this.Controls.Add(this.FileListBox);
this.Controls.Add(this.Button1);
this.Controls.Add(this.VaultsComboBox);
this.Controls.Add(this.VaultsLabel);
this.Name = "Form1";
this.Text = "Serial Numbers";
this.Load += new System.EventHandler(this.Form1_Load);
this.ResumeLayout(false);
this.PerformLayout();
}
#endregion
internal System.Windows.Forms.Label VaultsLabel;
internal System.Windows.Forms.ComboBox VaultsComboBox;
internal System.Windows.Forms.Button Button1;
internal System.Windows.Forms.ListBox FileListBox;
internal System.Windows.Forms.Button BrowseButton;
internal System.Windows.Forms.Button NewButton;
internal System.Windows.Forms.OpenFileDialog OpenFileDialog1;
}
}
