Use the Bill of Materials tab to view named BOMs. Named BOMs can be saved from computed BOMs and SOLIDWORKS BOMs.
To display a computed BOM:

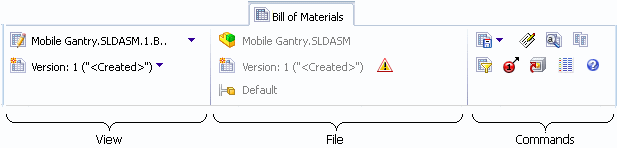

In your local file vault, select a SOLIDWORKS assembly or drawing. On the Bill of Materials tab, for BOM, select a named BOM
icon or SOLIDWORKS named BOM
icon.
File
Information about the file associated with the named BOM.
| Source |
(Read-only) The assembly or drawing that is associated with the named BOM. |
| Source version |
(Read-only) The version of the associated file. The Update Source Version icon at the end of the text field appears as  if a more recent version of the source file exists and you can update the named BOM data to match it.
If the icon appears as  , the named BOM is based on the latest version of the source file.
|
| Configuration |
(Read-only) The configuration of the associated file. |
BOM Table Properties
A named BOM has the same column configuration as the BOM from which it is derived. These are the default BOM columns. Your administrator may have configured a BOM template with a different column display.
| File Name |
The file name of the assembly component. |
| Configuration |
A configuration name in the assembly. |
| Part Number |
The part number defined in the component. |
| Qty |
The component quantity for this configuration. |
| State |
The state of the component file in Enterprise PDM. |
| Description |
The component description for the file. |
| Revision |
The revision number of the component file in Enterprise PDM. |
Shortcut Menus
Shortcut menus in the BOM table make it easier to edit named BOMs.
Right-click a column heading to access commands you can use to modify the column layout.
For named BOMs based on SOLIDWORKS BOMs, there is no column shortcut menu.
| Insert |
Lets you insert columns by choosing Column Right or Column Left. |
| Hide Column |
Hides the selected column. |
| Unhide Column |
Lists hidden columns and unhides the column you select. |
| Unhide All |
Unhides all hidden columns. |
| Update Column |
Displays the Update BOM dialog box, where you can modify the name, alignment, and default width of the selected column. |
| Delete Column |
Deletes a column that has been added to the BOM. Added columns are identified by  .
|
Right-click in the BOM list to select a file and display the following commands.
For named BOMs based on SOLIDWORKS BOMs, only Browse to and Browse to in a New Window are available.
| Browse to in a New Window |
Opens a new Explorer window with the file you select as the selected file in the top pane of the new window. |
| Browse to |
Changes the focus in the top section of the right pane to the selected file. If the selected file is a drawing or assembly, the BOM for the file is displayed. |
| Insert |
Inserts blank rows in the BOM:
- Row Above inserts a row above the selected row, at the same level in the hierarchy.
- Row Below inserts a row below the selected row, at the same level in the hierarchy.
- Child Row inserts a row below the selected row, as a child to the selected row.
|
| Copy |
Copies the selected row. |
| Paste |
If you copy a row, pastes it at the cursor location. |
| Delete |
Deletes the selected row. Only available for rows you have added.
|
| Hide Row |
Hides the selected row. |
| Unhide Row |
Lists hidden rows and unhides the row you select. |
| Unhide All |
Unhides all hidden rows. |
