Lofted Bends

You can create bent lofted bends from sketches on non-parallel planes. Previously, the planes had to be parallel.

To create bent lofted bends:

  1. Open install_dir\samples\whatsnew\sheetmetal\bent_lofted_bends.sldprt.
  2. Click Lofted Bends (Sheet Metal toolbar) or Insert > Sheet Metal > Lofted Bends.

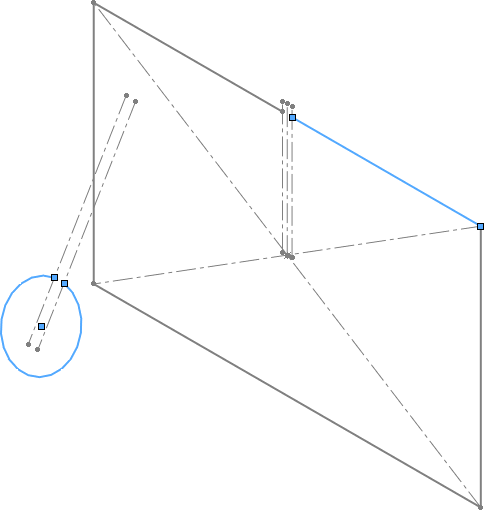

  3. In the graphics area, select the entities shown.

  4. Click .

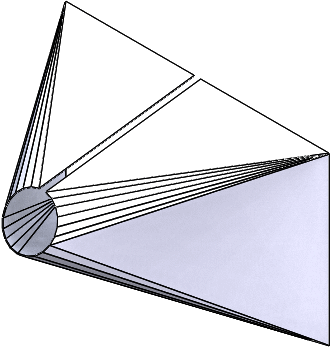

    Bent lofted bends form a realistic transition between the non-parallel profiles.
