Creating Planes Normal to View

To create a plane normal to the current view orientation:

  1. Orient the model to the desired view orientation.
  2. Click Plane (Reference Geometry toolbar) or Insert > Reference Geometry > Plane.

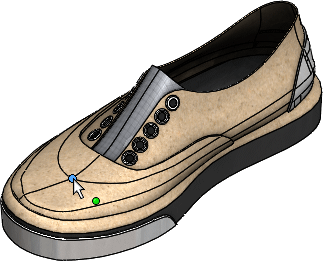

  3. For First Reference , select a vertex in the graphics area.

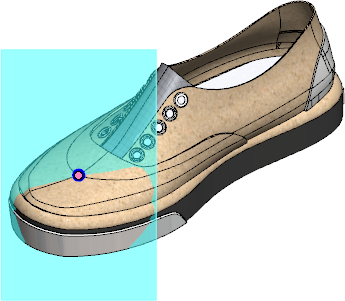

  4. In the PropertyManager, under First Reference, click Parallel to screen .

  5. Optionally enter a value for Distance to offset the plane from the reference vertex.
  6. Click .

    To change the position of the plane, rotate the model and click Update Plane in the PropertyManager.
