File Detail View

To open the file detail view, do one of the following:
  • Click the file row in the file list.
  • Click the file detail view link.

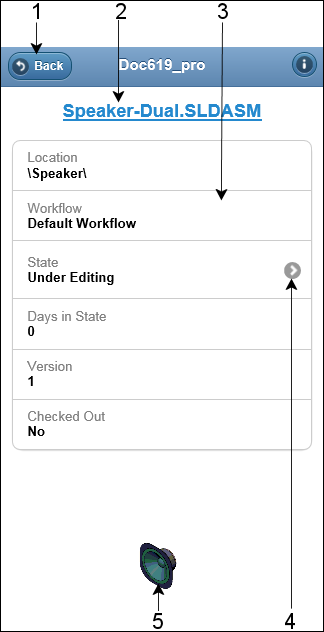

File Detail View

1 Back button Returns you to the file or folder list.
2 File name link Downloads a file.
3 File information area Displays the information about the file and the variables that are defined in the column list in the Web.config file.
4 Change state link Lets you change the state of the selected file.
You can change the state of one file only.
5 Preview area Displays a bitmap image. If the bitmap image is not available, this area is blank.
