Incrementing Revision Tags

You can increment the revision tags on the latest versions of files as you upgrade the files.

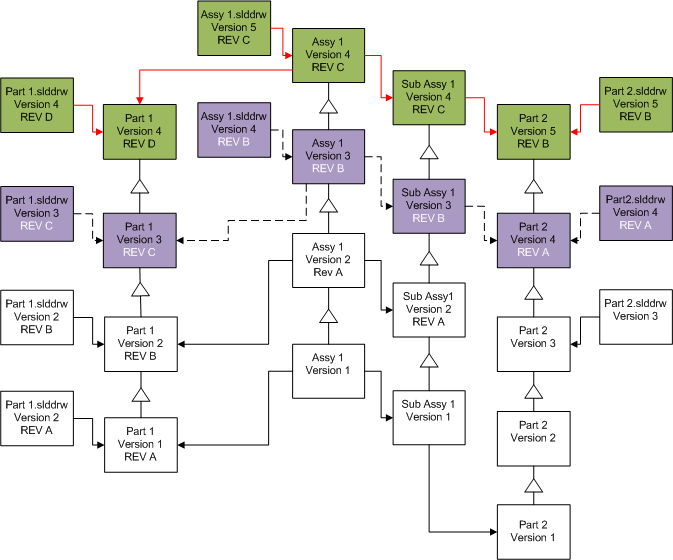

Selections represented In the diagram below are:

Screen Option Selections
Search Files to Upgrade Files of type <All SW file types>
Version Settings Create new version of files Files referencing older versions
  • Are re-linked to the new version

Update revisions

  • Increment revision

Reference links before upgrade Files before upgrade, showing revision that is moved and incremented
Reference links after upgrade Upgraded files
